PurposeParental vector for the CRISPRi/a libraries. Expresses an sgRNA from the U6 promoter and a puromycin resistance cassette and BFP from the EF1Alpha promoter
-
Depositing Lab
-

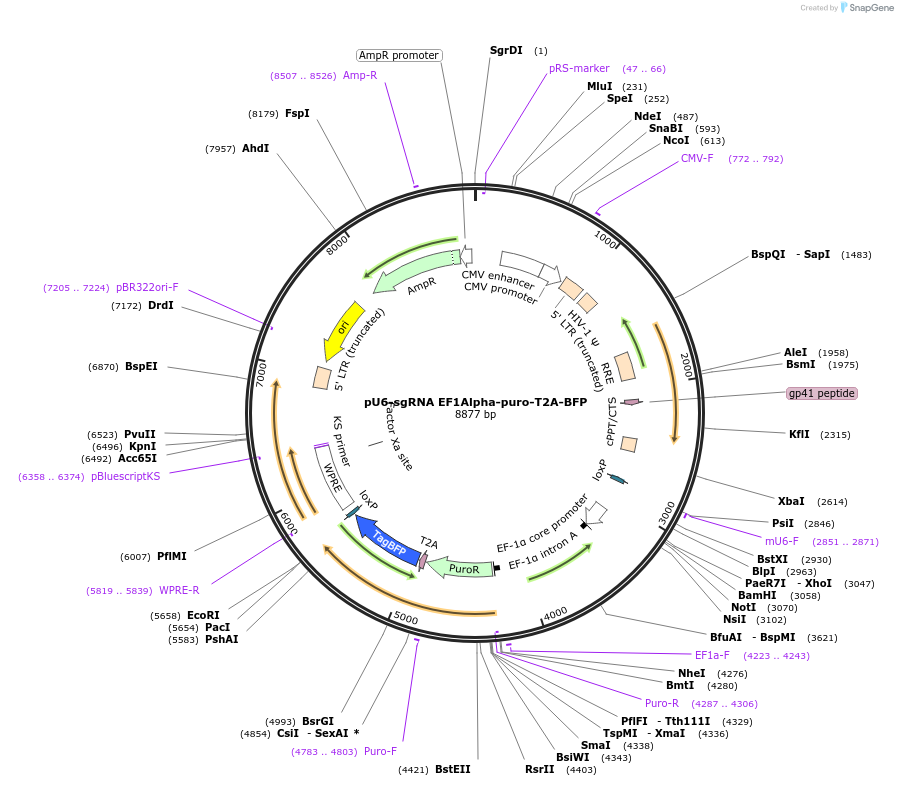

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 60955 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepSICO derivative
-
Backbone manufacturerAddgene
- Backbone size w/o insert (bp) 8200
- Total vector size (bp) 8888
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberLow Copy
Gene/Insert 1
-
Gene/Insert namesgGFP-NT2
-
Insert Size (bp)113
Gene/Insert 2
-
Gene/Insert namepuro-T2A-BFP
-
Insert Size (bp)1371
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pU6-sgRNA EF1Alpha-puro-T2A-BFP was a gift from Jonathan Weissman (Addgene plasmid # 60955 ; http://n2t.net/addgene:60955 ; RRID:Addgene_60955) -
For your References section:
Genome-Scale CRISPR-Mediated Control of Gene Repression and Activation. Gilbert LA, Horlbeck MA, Adamson B, Villalta JE, Chen Y, Whitehead EH, Guimaraes C, Panning B, Ploegh HL, Bassik MC, Qi LS, Kampmann M, Weissman JS. Cell. 2014 Oct 23;159(3):647-61. doi: 10.1016/j.cell.2014.09.029. Epub 2014 Oct 9. 10.1016/j.cell.2014.09.029 PubMed 25307932
