Purposeguide RNA (gRNA) expression vector used to create a gRNA to a specific sequence, uses U6 promoter
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 43860 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

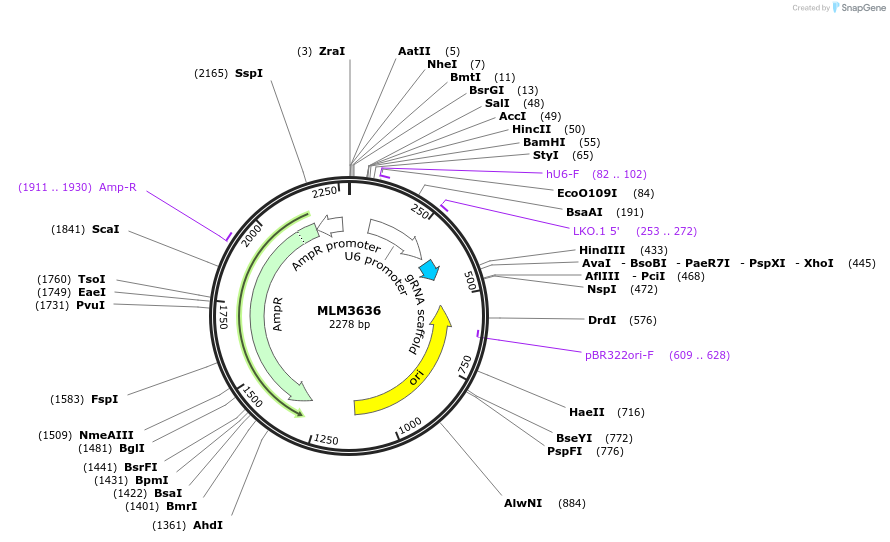

Backbone
-
Vector backboneHuman-gRNA-ExpressionVector
-
Backbone manufacturerJoung lab MLM3636
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)XL1 Blue
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameNone
- Promoter U6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (not destroyed)
- 3′ cloning site BsmBI (not destroyed)
- 5′ sequencing primer OS280 (5’-CAGGGTTATTGTCTCATGAGCGG-3’) (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Human cell gRNA Expression Vector for use with JDS246 (Addgene plasmid# 43861--mammalian codon-optimized streptococcus pyogenes Cas9). See the supplemental document "Joung Lab gRNA Cloning Protocol" for more details.
For more information on Joung Lab CRISPR Plasmids please refer to: http://www.addgene.org/crispr/jounglab/
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MLM3636 was a gift from Keith Joung (Addgene plasmid # 43860 ; http://n2t.net/addgene:43860 ; RRID:Addgene_43860)
