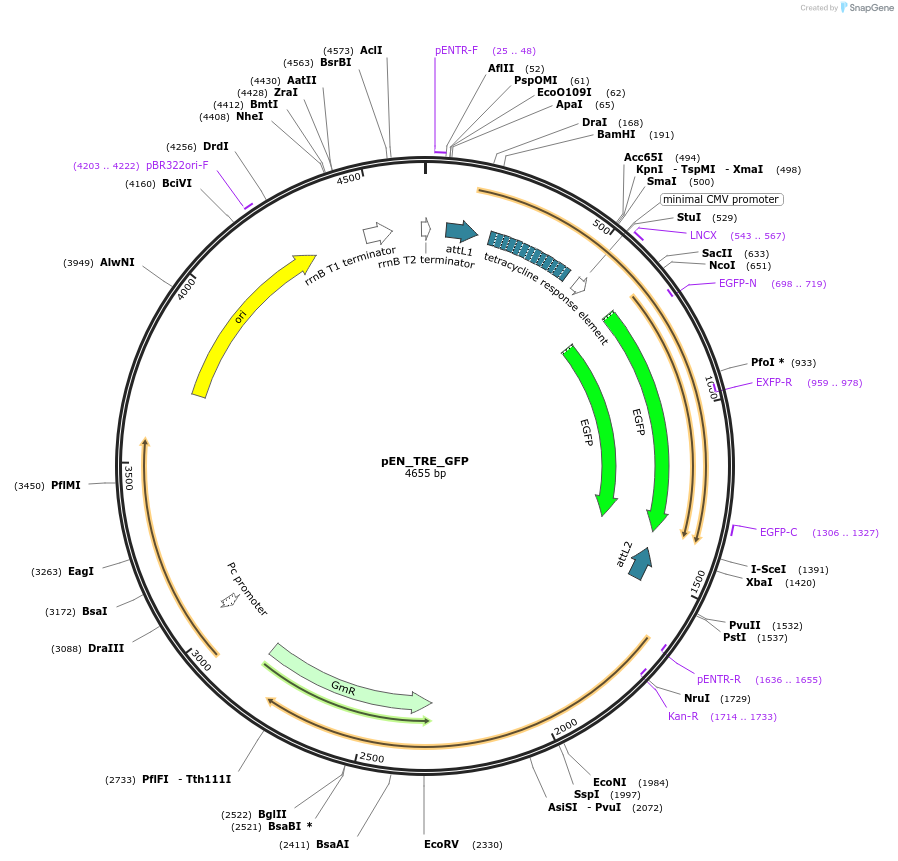

Purpose(Empty Backbone) Entry vector with TRE promoter driving GFP expression.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 25767 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * |
* Log in to view industry pricing.
Backbone
-
Vector backbonepENTR1A-Gent
-
Backbone manufacturerATCC 10326362
- Backbone size (bp) 4655
-
Vector typeEntry vector
Growth in Bacteria
-
Bacterial Resistance(s)Gentamicin, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Top10
-
Growth instructionsTop10
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameNone
-
Tag
/ Fusion Protein
- GFP (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site attL1 (not destroyed)
- 3′ cloning site attL2 (not destroyed)
- 5′ sequencing primer pCEP-fwd
- 3′ sequencing primer n/a (Common Sequencing Primers)
Resource Information
-
Addgene Notes
-
A portion of this plasmid was derived from a plasmid made byTRE promoter- David Anderson, Caltech
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Entry vector with TRE-driven GFP
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEN_TRE_GFP was a gift from Iain Fraser (Addgene plasmid # 25767 ; http://n2t.net/addgene:25767 ; RRID:Addgene_25767) -
For your References section:
A single lentiviral vector platform for microRNA-based conditional RNA interference and coordinated transgene expression. Shin KJ, Wall EA, Zavzavadjian JR, Santat LA, Liu J, Hwang JI, Rebres R, Roach T, Seaman W, Simon MI, Fraser ID. Proc Natl Acad Sci U S A. 2006 Sep 12. 103(37):13759-64. 10.1073/pnas.0606179103 PubMed 16945906
