Purpose(Empty Backbone) Entry vector with TRE-tight promoter followed by multiple cloning site.
-
Depositing Lab
-

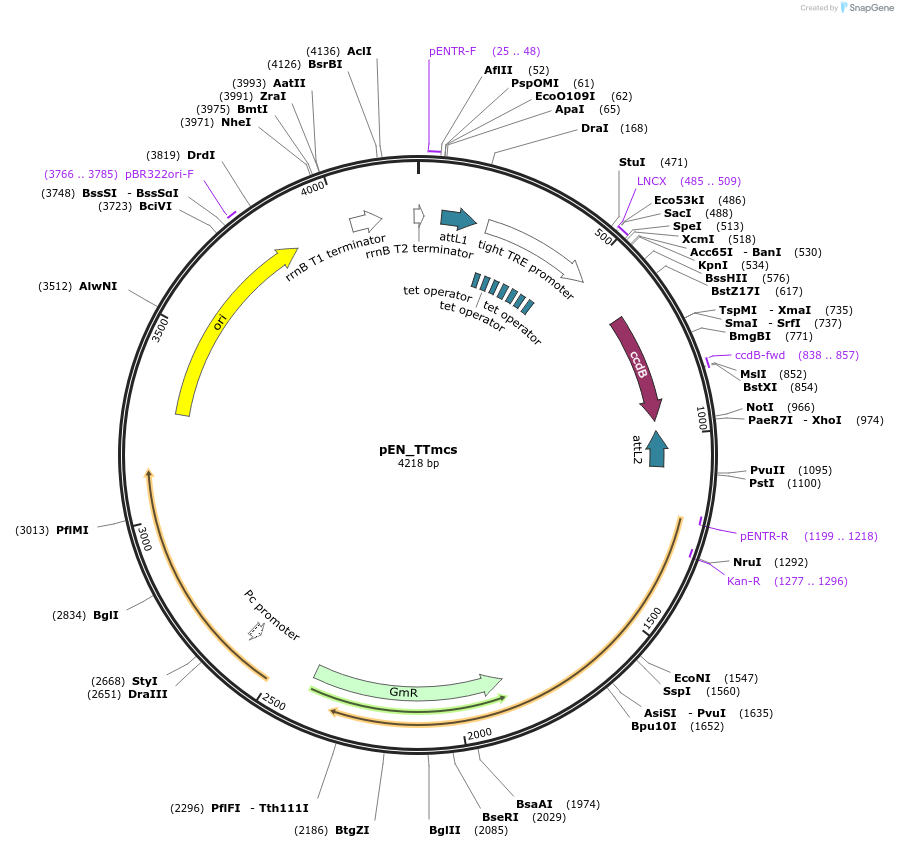

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 25755 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepENTR1A-Gent
-
Backbone manufacturerATCC 10326362
- Backbone size (bp) 4218
-
Vector typeEntry vector
Growth in Bacteria
-
Bacterial Resistance(s)Gentamicin, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DB3.1
-
Growth instructionsDB3.1 (ccdB survival)
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameNone
Cloning Information
- Cloning method Gateway Cloning
- 5′ cloning site attL1 (not destroyed)
- 3′ cloning site attL2 (not destroyed)
- 5′ sequencing primer pCEP-fwd
- 3′ sequencing primer n/a (Common Sequencing Primers)
Resource Information
-
Addgene Notes
-
A portion of this plasmid was derived from a plasmid made byTRE tight promoter- David Anderson, Caltech;
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
shRNA expression; miR30-based topology; TRE-TIGHT Pmin promoter + DsRed2 spacer; Entry vector backbone; +ccdB in parent; Spe1 d/s of TRE-TIGHT
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEN_TTmcs was a gift from Iain Fraser (Addgene plasmid # 25755 ; http://n2t.net/addgene:25755 ; RRID:Addgene_25755) -
For your References section:
A single lentiviral vector platform for microRNA-based conditional RNA interference and coordinated transgene expression. Shin KJ, Wall EA, Zavzavadjian JR, Santat LA, Liu J, Hwang JI, Rebres R, Roach T, Seaman W, Simon MI, Fraser ID. Proc Natl Acad Sci U S A. 2006 Sep 12. 103(37):13759-64. 10.1073/pnas.0606179103 PubMed 16945906
