LiOn-CAG∞GFP
(Plasmid
#154015)
-
PurposeVector based on the LiOn integration-coupled translational switch (Kumamoto et al bioRxiv 2019) expressing the fluorescent protein EGFP from a CAG promoter upon action of the piggyBac transposase
-
Depositing Lab
-

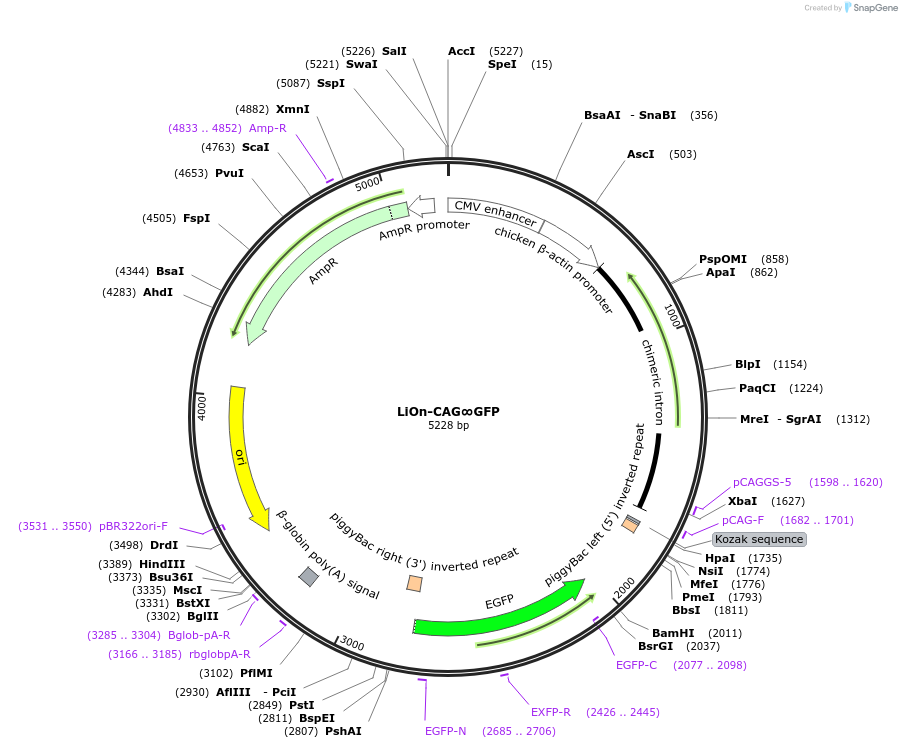

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 154015 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepUC57 mini
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameEGFP
-
Alt nameGFP
-
SpeciesSynthetic
- Promoter CAG
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer pCAGGS-5 (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LiOn-CAG∞GFP was a gift from Jean Livet (Addgene plasmid # 154015 ; http://n2t.net/addgene:154015 ; RRID:Addgene_154015) -
For your References section:
Direct Readout of Neural Stem Cell Transgenesis with an Integration-Coupled Gene Expression Switch. Kumamoto T, Maurinot F, Barry-Martinet R, Vaslin C, Vandormael-Pournin S, Le M, Lerat M, Niculescu D, Cohen-Tannoudji M, Rebsam A, Loulier K, Nedelec S, Tozer S, Livet J. Neuron. 2020 Aug 19;107(4):617-630.e6. doi: 10.1016/j.neuron.2020.05.038. Epub 2020 Jun 18. 10.1016/j.neuron.2020.05.038 PubMed 32559415
