MAP2K3_pLX307
(Plasmid #98355)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 98355 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

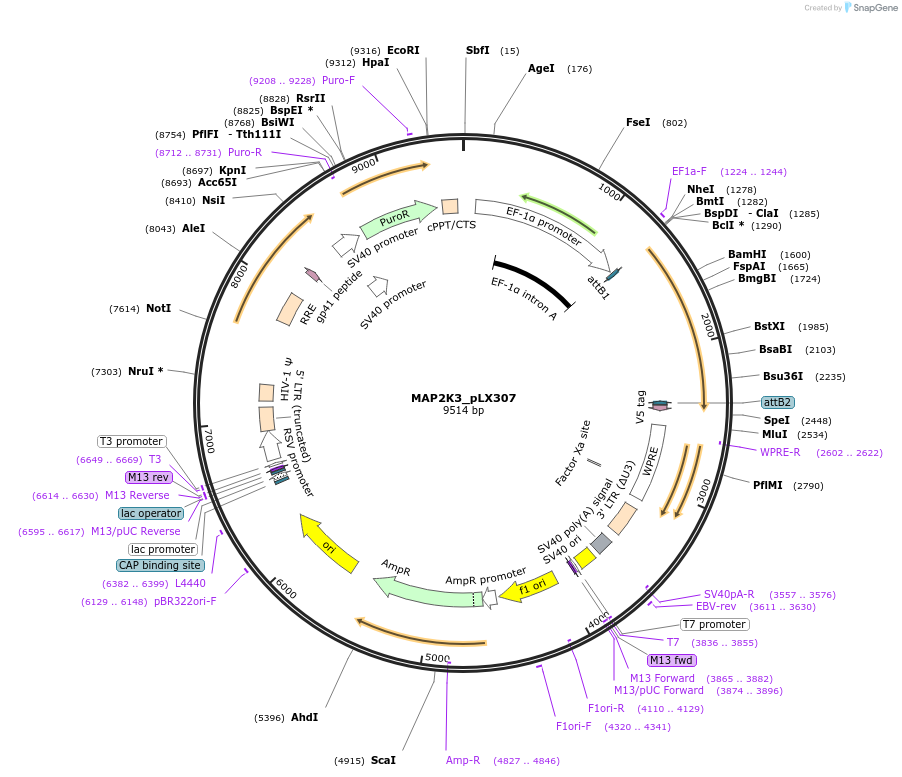

Backbone

  • Vector backbone
    pLX307
  • Backbone manufacturer
    David Root (Addgene plasmid # 41392)
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MAP2K3
  • Species
    H. sapiens (human)
  • Mutation
    Q85K
  • Entrez Gene
    MAP2K3 (a.k.a. MAPKK3, MEK3, MKK3, PRKMK3, SAPKK-2, SAPKK2)
  • Promoter E1Fa
  • Tag / Fusion Protein
    • V5 (C terminal on backbone)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer TTCTTCCATTTCAGGTGTCGTGAG
  • 3′ sequencing primer GTGGATACGCTGCTTTAATGCCTT
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Addgene's sequencing results found a Q85K mutation compared to reference sequence NP_659731.1. This change is not known to affect MAP2K3 function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    MAP2K3_pLX307 was a gift from William Hahn & Sefi Rosenbluh (Addgene plasmid # 98355 ; http://n2t.net/addgene:98355 ; RRID:Addgene_98355)

  • For your References section:

    Genetic and Proteomic Interrogation of Lower Confidence Candidate Genes Reveals Signaling Networks in beta-Catenin-Active Cancers. Rosenbluh J, Mercer J, Shrestha Y, Oliver R, Tamayo P, Doench JG, Tirosh I, Piccioni F, Hartenian E, Horn H, Fagbami L, Root DE, Jaffe J, Lage K, Boehm JS, Hahn WC. Cell Syst. 2016 Sep 28;3(3):302-316.e4. doi: 10.1016/j.cels.2016.09.001. 10.1016/j.cels.2016.09.001 PubMed 27684187
