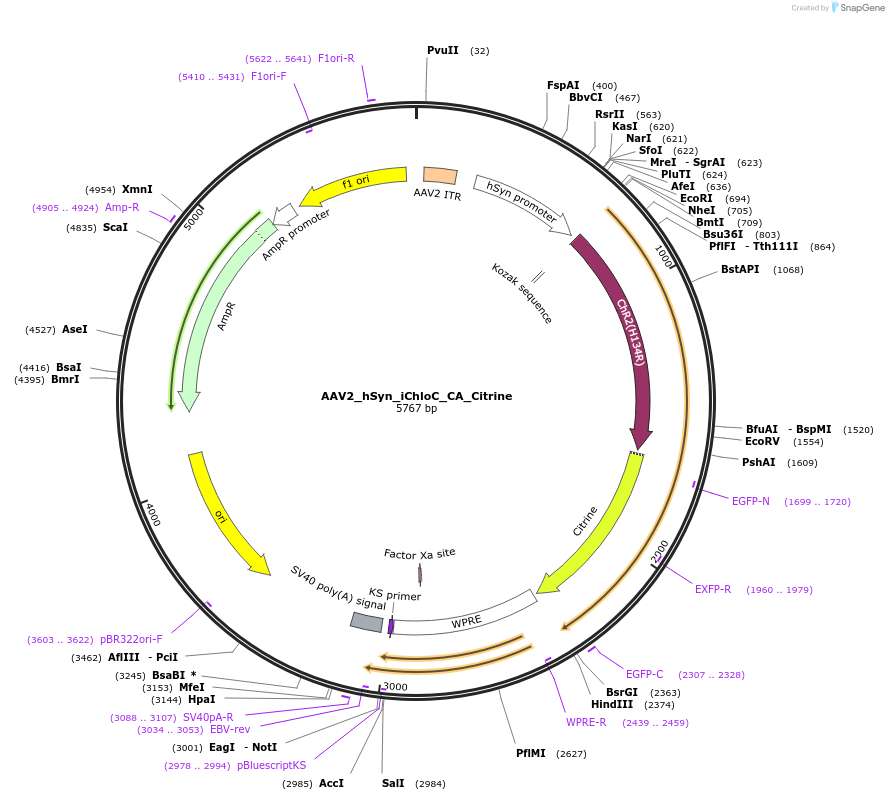

AAV2_hSyn_iChloC_CA_Citrine
(Plasmid #98220)

• Purpose: Slow cycling (open for minutes) step-function artificial anion conducting channelrhodopsin (aACR). High light sensitivity. Activation with blue to green light, inactivation max with 605 nm (accelarates closure to ms). Codon optimized for mammalian expression.
• Depositing Lab: Simon Wiegert
• Publication: Wietek et al Sci Rep. 2017 Nov 2;7(1):14957. doi: 10.1038/s41598-017-14330-y.

Backbone

• Vector backbone: pAAV2
• Backbone size w/o insert (bp): 5303
• Vector type: Mammalian Expression, AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Synthetic construct iChloC_C128A gene
• Alt name: iChloC
• Alt name: CrChR2
• Species: Synthetic; Chlamydomonas reinhardtii
• Insert Size (bp): 927
• Mutation: E83Q, E90R, E101S, C128A, T159C, D156N
• Promoter: human synapsin
• Tag / Fusion Protein:
  • Citrine (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: EcoRI (not destroyed)
• 3′ cloning site: XhoI (not destroyed)
• 5′ sequencing primer: GACTCAGCGCTGCCTCAGTCTG
• 3′ sequencing primer: TGAACAGCTCCTCGCCCTTG

Resource Information

• Supplemental Documents:
  • AAV2_hSyn_iChloC_CA_Citrine

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Please visit https://www.biorxiv.org/content/early/2017/06/27/156422 for bioRxiv preprint.
