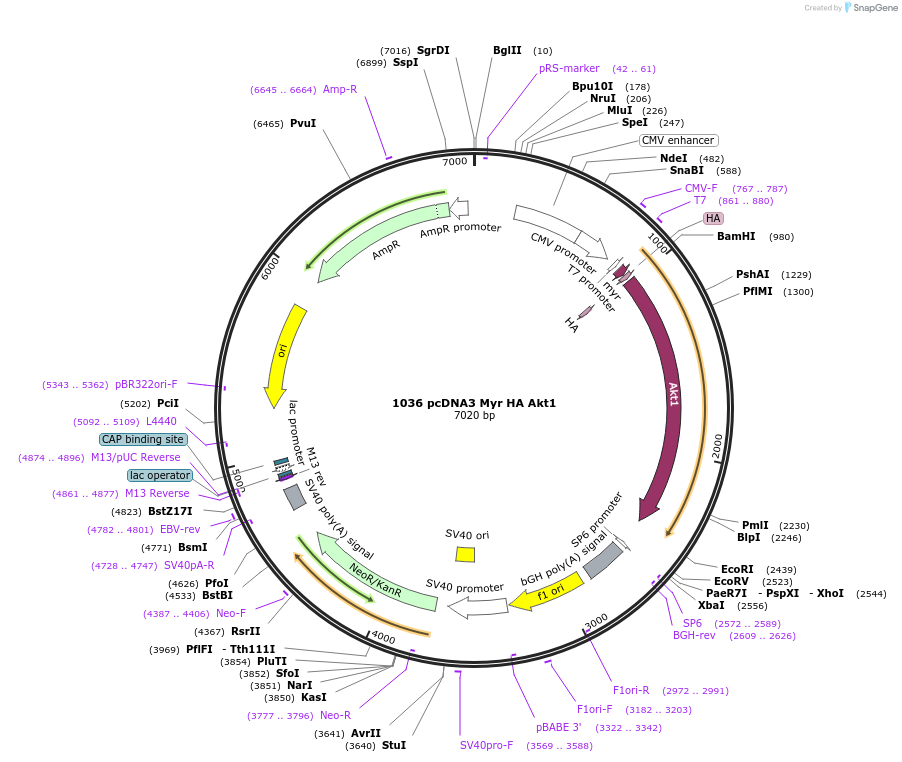

1036 pcDNA3 Myr HA Akt1
(Plasmid #9008)

• Purpose: Mammalian expression of human Akt1 with myr, HA tags
• Depositing Lab: William Sellers
• Publication: Ramaswamy et al Proc Natl Acad Sci U S A. 1999 Mar 2. 96(5):2110-5.

Backbone

• Vector backbone: pcDNA3
• Backbone manufacturer: Invitrogen
• Backbone size w/o insert (bp): 5446
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Akt1
• Alt name: Akt
• Species: H. sapiens (human)
• Insert Size (bp): 1500
• Entrez Gene: AKT1 (a.k.a. AKT, PKB, PKB-ALPHA, PRKBA, RAC, RAC-ALPHA)
• Tags / Fusion Proteins:
  • myr (N terminal on backbone)
  • HA (N terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamHI (not destroyed)
• 3′ cloning site: EcoRI (not destroyed)
• 5′ sequencing primer: CMV-F
• 3′ sequencing primer: BGH-rev

Resource Information

• Articles Citing this Plasmid:
  • 74 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

The sequence of the HA tag in this plasmid is YAYDVPDYA instead of YPYDVPDYA. Not all HA antibodies will recognize this sequence. Cell Signaling Technology's HA antibody #2367 will work.
