Depositing Lab
-
Publication
-

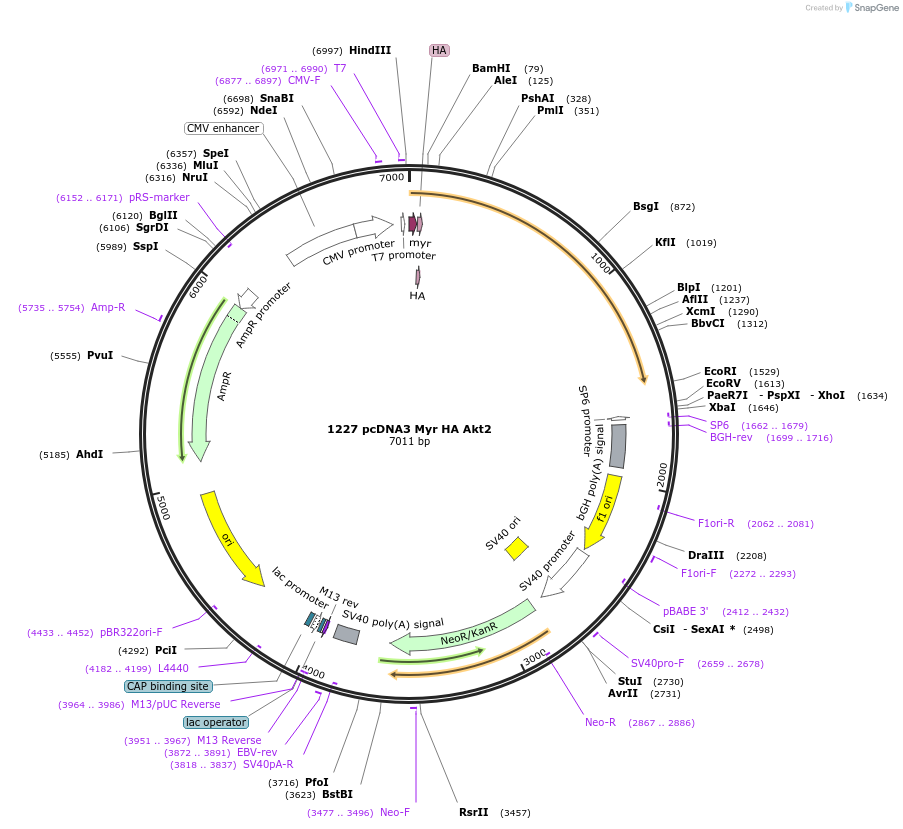

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 9016 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepcDNA3
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5446
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameAkt2
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1500
-
Entrez GeneAKT2 (a.k.a. HIHGHH, PKBB, PKBBETA, PRKBB, RAC-BETA)
-
Tags
/ Fusion Proteins
- Myr (N terminal on backbone)
- HA (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer CMV-F
- 3′ sequencing primer BGH-rev (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The sequence of the HA tag in this plasmid is YAYDVPDYA instead of YPYDVPDYA. Not all HA antibodies will recognize this sequence. Cell Signaling Technology's HA antibody #2367 will work.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
1227 pcDNA3 Myr HA Akt2 was a gift from William Sellers (Addgene plasmid # 9016 ; http://n2t.net/addgene:9016 ; RRID:Addgene_9016)
