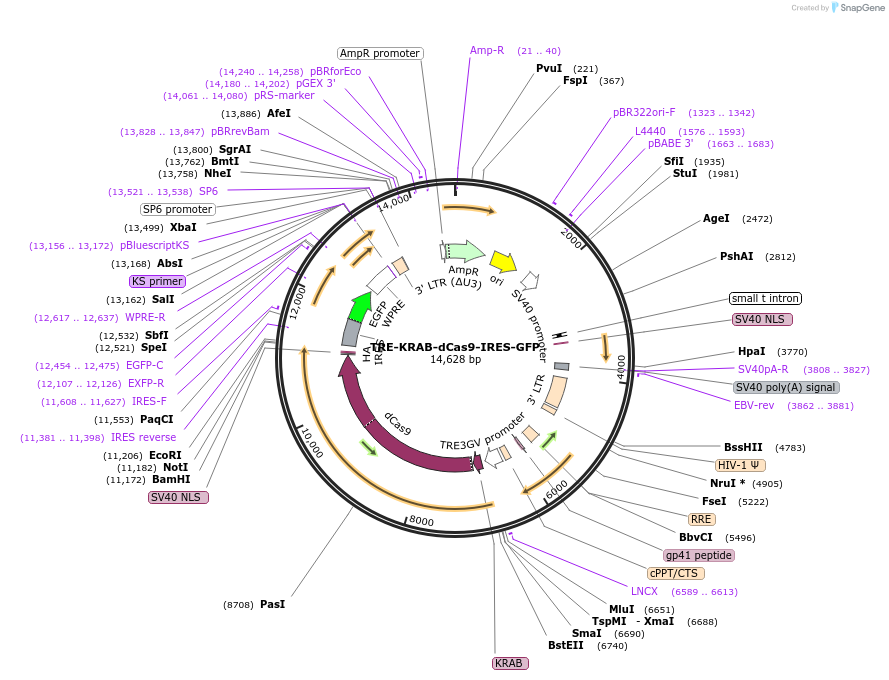

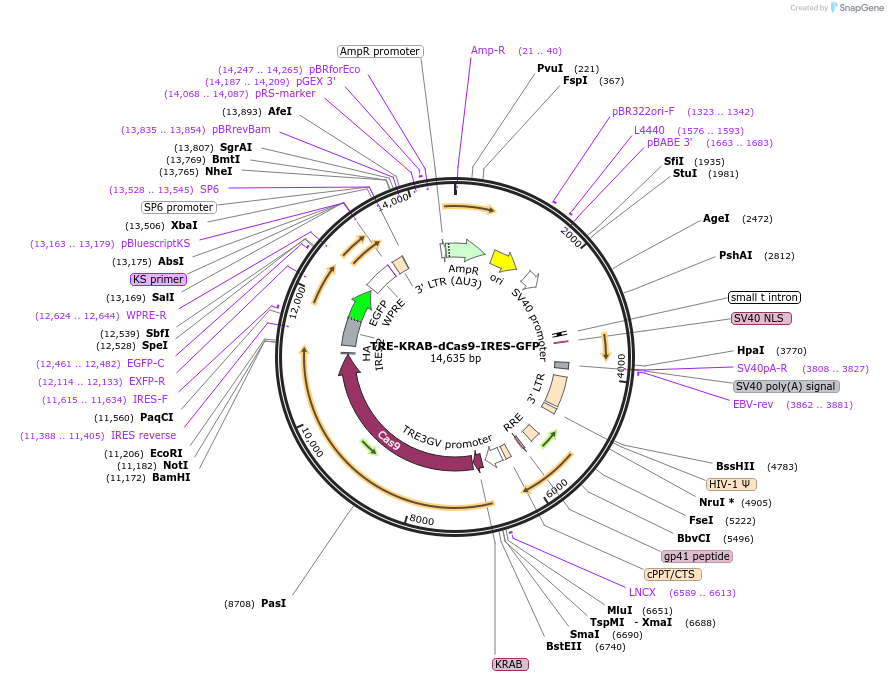

TRE-KRAB-dCas9-IRES-GFP
(Plasmid #85556)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 85556 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pHR
  • Backbone manufacturer
    Addgene
  • Backbone size w/o insert (bp) 8812
  • Total vector size (bp) 14627
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR
  • Selectable markers
    GFP

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    KRAB-dCas9-IRES-GFP
  • Species
    Synthetic
  • Insert Size (bp)
    5815
  • Promoter TRE3G
  • Tags / Fusion Proteins
    • KRAB domain (N terminal on insert)
    • HA Tag (C terminal on insert)
    • 2x NLS (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer pHR-F TTACAGGGACAGCAGAGATC
  • 3′ sequencing primer WPRE-R CATAGCGTAAAAGGAGCAACA
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Jonathan Weissman (Addgene #60954)
  • Articles Citing this Plasmid

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    TRE-KRAB-dCas9-IRES-GFP was a gift from Eric Lander (Addgene plasmid # 85556 ; http://n2t.net/addgene:85556 ; RRID:Addgene_85556)
  • For your References section:

    Systematic mapping of functional enhancer-promoter connections with CRISPR interference. Fulco CP, Munschauer M, Anyoha R, Munson G, Grossman SR, Perez EM, Kane M, Cleary B, Lander ES, Engreitz JM. Science. 2016 Sep 29. pii: aag2445. 10.1126/science.aag2445 PubMed 27708057
