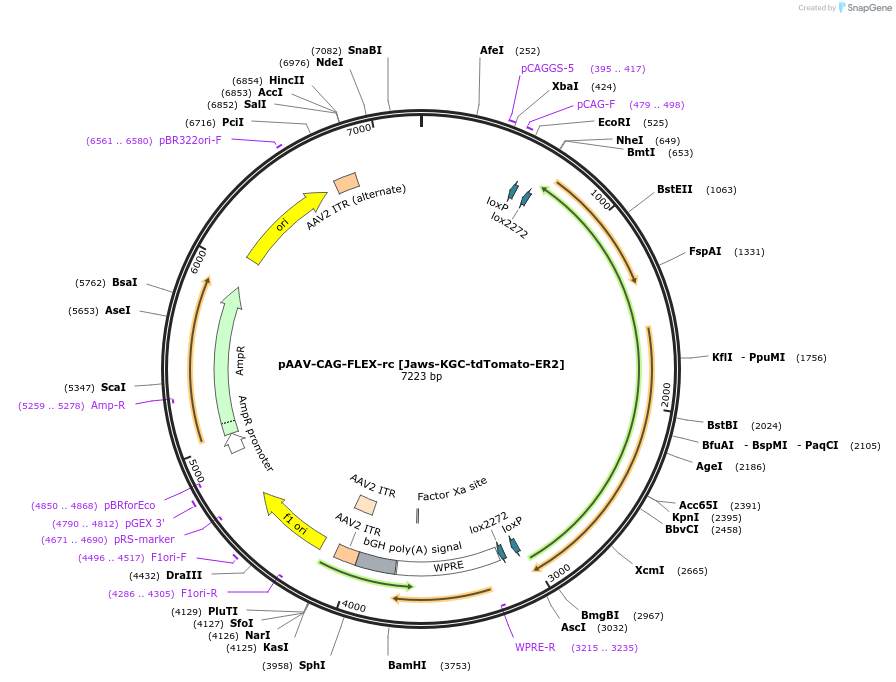

pAAV-CAG-FLEX-rc [Jaws-KGC-tdTomato-ER2]
(Plasmid #84446)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 84446 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart
AAV1 84446-AAV1 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. $405
Add to Cart
AAV5 84446-AAV5 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. $405
Add to Cart
AAV8 84446-AAV8 Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. $405
Add to Cart

Backbone

  • Vector backbone
    AAV with CAG promter
  • Backbone manufacturer
    Epoch
  • Backbone size w/o insert (bp) 4897
  • Total vector size (bp) 7267
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    Can use Stbl3 at 30°C (use carbenicillin if using Stbl3) or DH5a at 37°C
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Jaws-KGC-tdTomato-ER2
  • Alt name
    Halo57-KGC-tdTomato-ER2
  • Alt name
    Jaws
  • Species
    Haloarcula salinarum (stain Shark)
  • Insert Size (bp)
    2370
  • Mutation
    K200R W214F
  • GenBank ID
    KM000926.1
  • Promoter CAG
  • Tags / Fusion Proteins
    • KGC (C terminal on insert)
    • tdTomato (C terminal on insert)
    • ER2 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer tcggcttctggcgtgtgac
  • 3′ sequencing primer aaagagacagcaaccagg
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The plasmid is fully sequenced in the coding sequence regions (opsin-fluorophore and important flanking regions). Multiple digestions were done to verify the vector structure. The construct and the virus were both tested in vitro.

Information for AAV1 (Catalog # 84446-AAV1) ( Back to top)

Purpose

Ready-to-use AAV1 particles produced from pAAV-CAG-FLEX-rc [Jaws-KGC-tdTomato-ER2] (#84446). In addition to the viral particles, you will also receive purified pAAV-CAG-FLEX-rc [Jaws-KGC-tdTomato-ER2] plasmid DNA.

CAG-driven, Cre-dependent expression of Jaws-KGC-tdTomato-ER2 for optogenetic inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV1 cap gene
  • Buffer PBS + 0.001% Poloxamer 188 + 200 mM NaCl
  • Serotype AAV1
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene tdTomato

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.1-0.8% of viral particles in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, it is necessary to optimize the injection volume and viral titer to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral particle dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV5 (Catalog # 84446-AAV5) ( Back to top)

Purpose

Ready-to-use AAV5 particles produced from pAAV-CAG-FLEX-rc [Jaws-KGC-tdTomato-ER2] (#84446). In addition to the viral particles, you will also receive purified pAAV-CAG-FLEX-rc [Jaws-KGC-tdTomato-ER2] plasmid DNA.

CAG-driven, Cre-dependent expression of Jaws-KGC-tdTomato-ER2 for optogenetic inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Poloxamer 188 + 200 mM NaCl
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.1-0.8% of viral particles in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, it is necessary to optimize the injection volume and viral titer to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral particle dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV8 (Catalog # 84446-AAV8) ( Back to top)

Purpose

Ready-to-use AAV8 particles produced from pAAV-CAG-FLEX-rc [Jaws-KGC-tdTomato-ER2] (#84446). In addition to the viral particles, you will also receive purified pAAV-CAG-FLEX-rc [Jaws-KGC-tdTomato-ER2] plasmid DNA.

CAG-driven, Cre-dependent expression of Jaws-KGC-tdTomato-ER2 for optogenetic inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV8 cap gene
  • Buffer PBS + 0.001% Poloxamer 188
  • Serotype AAV8
  • Purification Iodixanol gradient ultracentrifugation

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.1-0.8% of viral particles in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, it is necessary to optimize the injection volume and viral titer to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral particle dosage in order to reduce the likelihood of Cre-independent expression.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CAG-FLEX-rc [Jaws-KGC-tdTomato-ER2] was a gift from Edward Boyden (Addgene plasmid # 84446 ; http://n2t.net/addgene:84446 ; RRID:Addgene_84446) For viral preps, please replace (Addgene plasmid # 84446) in the above sentence with: (Addgene viral prep # 84446-AAV1), (Addgene viral prep # 84446-AAV5), or (Addgene viral prep # 84446-AAV8)

  • For your References section:

    Noninvasive optical inhibition with a red-shifted microbial rhodopsin. Chuong AS, Miri ML, Busskamp V, Matthews GA, Acker LC, Sorensen AT, Young A, Klapoetke NC, Henninger MA, Kodandaramaiah SB, Ogawa M, Ramanlal SB, Bandler RC, Allen BD, Forest CR, Chow BY, Han X, Lin Y, Tye KM, Roska B, Cardin JA, Boyden ES. Nat Neurosci. 2014 Aug;17(8):1123-9. doi: 10.1038/nn.3752. Epub 2014 Jul 6. 10.1038/nn.3752 PubMed 24997763
