pBiex PKC - Peptide 8 GFP RFP
(Plasmid
#83564)
-
PurposeExpresses a GFP-RFP FRET sensor containing the catalytic domain of PKCalpha and a short peptide substrate derived from the EGF receptor.
-
Depositing Lab
-

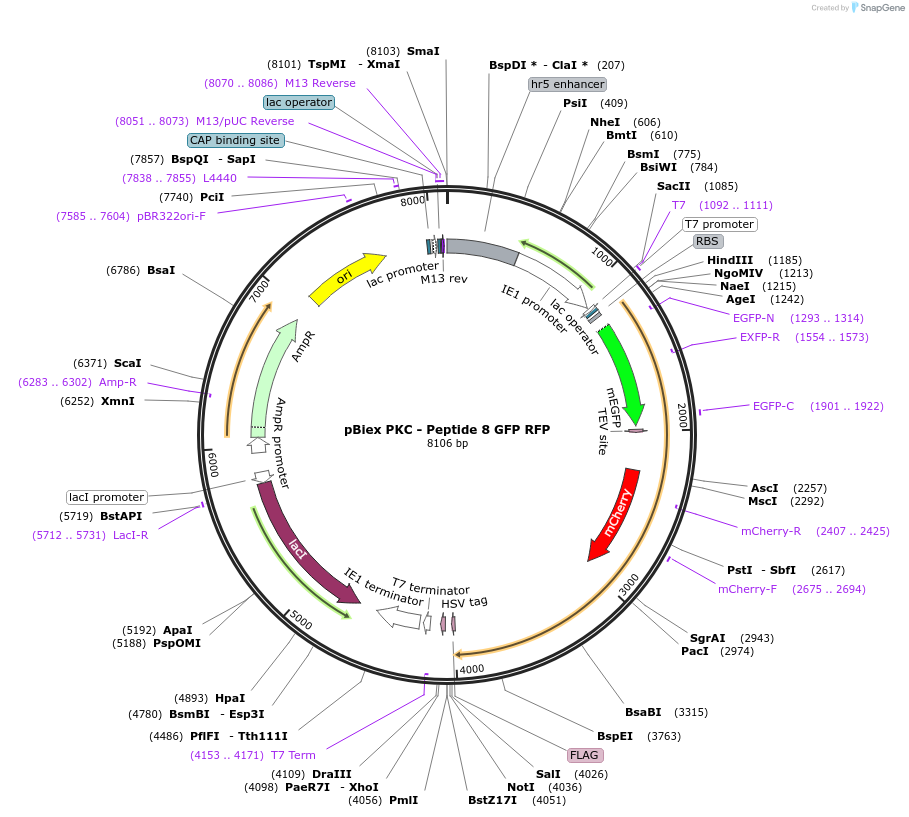

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 83564 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBiex-1
-
Backbone manufacturerNovagen
- Backbone size w/o insert (bp) 5259
- Total vector size (bp) 8106
-
Vector typeBacterial Expression, Insect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePKC alpha
-
Alt namePRKCA
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2868
-
MutationOnly catalytic domain of PKC (aa 335-672)
-
Entrez GenePRKCA (a.k.a. AAG6, PKC-alpha, PKCA, PKCI+/-, PKCalpha, PRKACA)
- Promoter T7 Promoter
-
Tags
/ Fusion Proteins
- eGFP
- mCherry
- FLAG purification tag (C terminal on insert)
- 10 nm ER/K Helix
- TEV Protease Site
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer T7 Foward
- 3′ sequencing primer T7 Reverse (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBiex PKC - Peptide 8 GFP RFP was a gift from Sivaraj Sivaramakrishnan (Addgene plasmid # 83564 ; http://n2t.net/addgene:83564 ; RRID:Addgene_83564) -
For your References section:
Substrate Affinity Differentially Influences Protein Kinase C Regulation and Inhibitor Potency. Sommese RF, Sivaramakrishnan S. J Biol Chem. 2016 Aug 23. pii: jbc.M116.737601. 10.1074/jbc.M116.737601 PubMed 27555323
