pGAPTrap-IRESMuro
(Plasmid
#82336)
-
PurposeBase vector targeting genes to the GAPDH locus of human cells. Inserted genes are expressed from a 2A sequence at the C terminus of GAPDH. Puromycin resistance is encoded by the Muro gene.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 82336 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepGAPTrap
-
Vector typeMammalian Expression, Synthetic Biology
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameIRESMuro
-
SpeciesSynthetic
-
Insert Size (bp)1500
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamH1 (not destroyed)
- 3′ cloning site Cla1 (not destroyed)
- 5′ sequencing primer caacagggtggtggacctcatg
- 3′ sequencing primer ctcagacgtcttgagtgctacagg (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGAPTrap-IRESMuro was a gift from Ed Stanley (Addgene plasmid # 82336 ; http://n2t.net/addgene:82336 ; RRID:Addgene_82336) -
For your References section:
GAPTrap: A Simple Expression System for Pluripotent Stem Cells and Their Derivatives. Kao T, Labonne T, Niclis JC, Chaurasia R, Lokmic Z, Qian E, Bruveris FF, Howden SE, Motazedian A, Schiesser JV, Costa M, Sourris K, Ng E, Anderson D, Giudice A, Farlie P, Cheung M, Lamande SR, Penington AJ, Parish CL, Thomson LH, Rafii A, Elliott DA, Elefanty AG, Stanley EG. Stem Cell Reports. 2016 Sep 1. pii: S2213-6711(16)30139-4. doi: 10.1016/j.stemcr.2016.07.015. 10.1016/j.stemcr.2016.07.015 PubMed 27594589

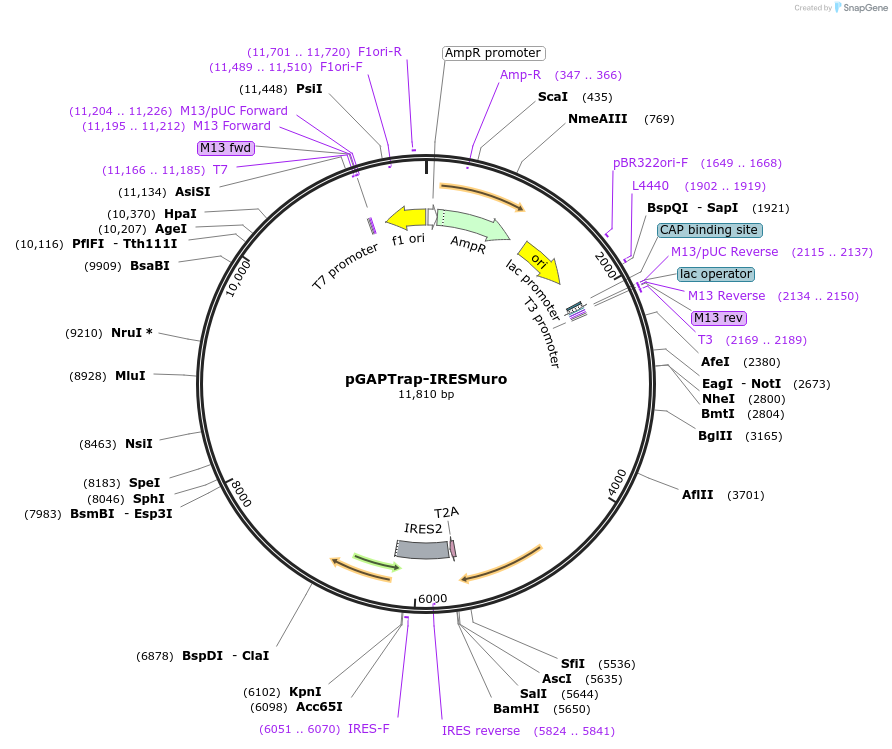

Map uploaded by the depositor.
