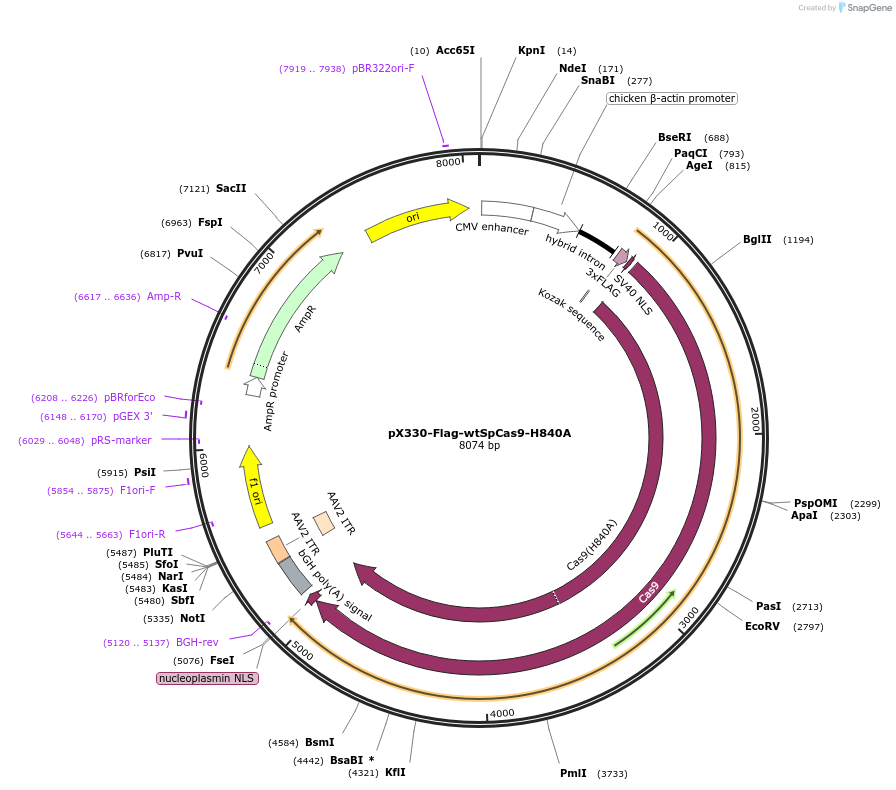

pX330-Flag-wtSpCas9-H840A
(Plasmid
#80453)
-
PurposeSpCas9 mammalian expression vector
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 80453 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepX330
- Backbone size w/o insert (bp) 3922
- Total vector size (bp) 8074
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSpCas9_H840A
-
Alt nameStreptococcus pyogenes Cas9 nuclease
-
SpeciesStreptococcus pyogenes
-
Insert Size (bp)4152
- Promoter CBh
-
Tags
/ Fusion Proteins
- 3xFLAG (N terminal on insert)
- NLS (N terminal on insert)
- NLS (C terminal on insert)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer TAGAAGGCACAGTCGAGG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pX330-Flag-wtSpCas9-H840A was a gift from Ervin Welker (Addgene plasmid # 80453 ; http://n2t.net/addgene:80453 ; RRID:Addgene_80453) -
For your References section:
PEAR, a flexible fluorescent reporter for the identification and enrichment of successfully prime edited cells. Simon DA, Talas A, Kulcsar PI, Biczok Z, Krausz SL, Varady G, Welker E. Elife. 2022 Feb 23;11. pii: 69504. doi: 10.7554/eLife.69504. 10.7554/eLife.69504 PubMed 35196219
