pEMS2049
(Plasmid
#79657)
-
PurposessAAV genome with Ple260 (PAX6 MiniPromoter) driving an emerald GFP (EmGFP) reporter. Contains WPRE
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 79657 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonessAAV2
- Backbone size w/o insert (bp) 4972
- Total vector size (bp) 7105
-
Vector typeAAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namessAAV Ple260-EmGFP WPRE
-
Alt namePle260 (PAX6 retinal enhancer)
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2147
-
GenBank ID
- Promoter PAX6 Retinal Enhancer
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site See map (unknown if destroyed)
- 3′ cloning site See map (unknown if destroyed)
- 5′ sequencing primer M13pUC-rev
- 3′ sequencing primer EBV-rev (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments

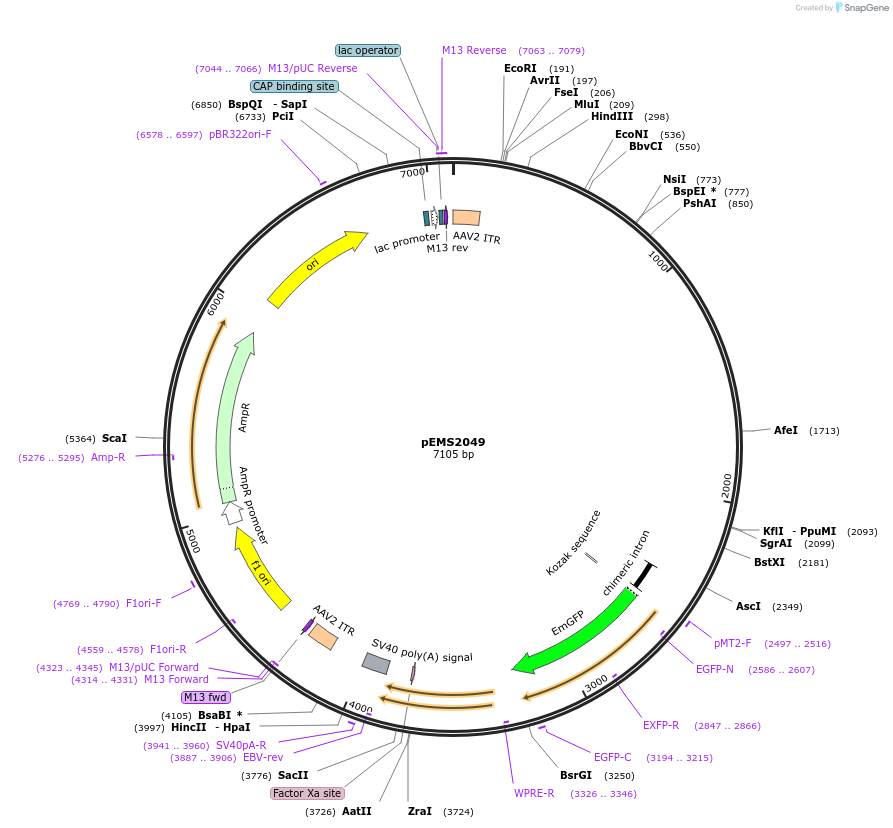

Please see the annotated GenBank file and the additional image file for the specific location of the minipromoter in this plasmid.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEMS2049 was a gift from Elizabeth Simpson (Addgene plasmid # 79657 ; http://n2t.net/addgene:79657 ; RRID:Addgene_79657) -
For your References section:
PAX6 MiniPromoters drive restricted expression from rAAV in the adult mouse retina. Hickmott JW, Chen CY, Arenillas DJ, Korecki AJ, Lam SL, Molday LL, Bonaguro RJ, Zhou M, Chou AY, Mathelier A, Boye SL, Hauswirth WW, Molday RS, Wasserman WW, Simpson EM. Mol Ther Methods Clin Dev. 2016 Aug 10;3:16051. doi: 10.1038/mtm.2016.51. eCollection 2016. 10.1038/mtm.2016.51 PubMed 27556059
