MetNI (Lm)
(Plasmid
#78316)
-
PurposeMethionine ABC Transporter
-
Depositing Lab
-

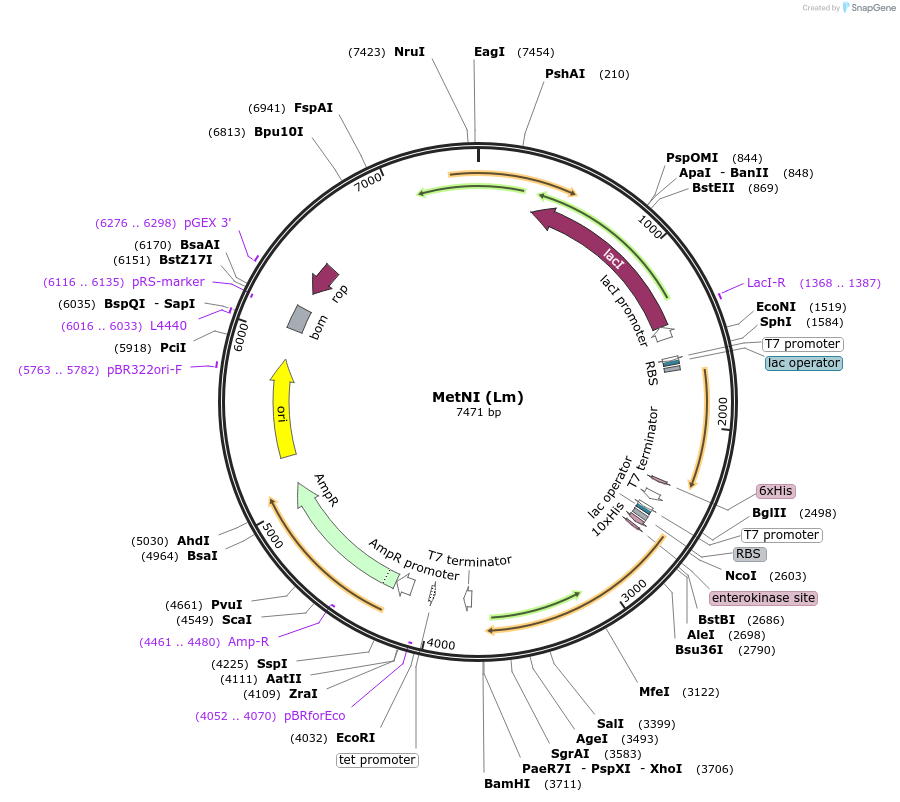

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 78316 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepET19b
-
Backbone manufacturerNovagen
- Backbone size w/o insert (bp) 5791
- Total vector size (bp) 7471
-
Modifications to backboneAdded extra 10x Histidine Tag to accomodate second insert (MetN)
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert 1
-
Gene/Insert nameMetI
-
SpeciesE. coli
-
Insert Size (bp)651
- Promoter T7 Promoter
-
Tag
/ Fusion Protein
- 6x Histidine Tag (C terminal on insert)
Cloning Information for Gene/Insert 1
- Cloning method Unknown
- 5′ sequencing primer T7 Forward
- 3′ sequencing primer T7 Reverse (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameMetN
-
SpeciesE. coli
-
Insert Size (bp)1029
- Promoter T7 Promoter
-
Tag
/ Fusion Protein
- 10x Histidine Tag (N terminal on insert)
Cloning Information for Gene/Insert 2
- Cloning method Unknown
- 5′ sequencing primer T7 Forward
- 3′ sequencing primer T7 Reverse (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MetNI (Lm) was a gift from Douglas Rees (Addgene plasmid # 78316 ; http://n2t.net/addgene:78316 ; RRID:Addgene_78316) -
For your References section:
The high-affinity E. coli methionine ABC transporter: structure and allosteric regulation. Kadaba NS, Kaiser JT, Johnson E, Lee A, Rees DC. Science. 2008 Jul 11;321(5886):250-3. doi: 10.1126/science.1157987. 10.1126/science.1157987 PubMed 18621668
