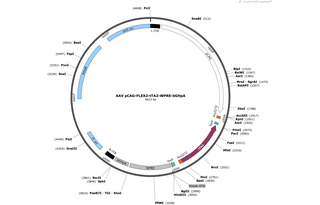

AAV pCAG-FLEX2-tTA2-WPRE-bGHpA
(Plasmid #65458)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 65458 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV-MCS
  • Backbone manufacturer
    Stratagene
  • Modifications to backbone
    A fragment containing the CAG promoter-FLEX2-tTA2-WPRE-bGHpA was swapped in to replace the CMV promoter-MCS-hGHpA sequence. Total insert size including the two ITRs is 4016 bp.
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    Stbl2
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    tTA2
  • Alt name
    tetracycline transactivator
  • Alt name
    pBTA35
  • Insert Size (bp)
    744
  • Promoter CAG

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Not1 (not destroyed)
  • 3′ cloning site Not1 (not destroyed)
  • 5′ sequencing primer none
  • 3′ sequencing primer none
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV pCAG-FLEX2-tTA2-WPRE-bGHpA was a gift from Hongkui Zeng (Addgene plasmid # 65458 ; http://n2t.net/addgene:65458 ; RRID:Addgene_65458)

  • For your References section:

    Transgenic mice for intersectional targeting of neural sensors and effectors with high specificity and performance. Madisen L, Garner AR, Shimaoka D, Chuong AS, Klapoetke NC, Li L, van der Bourg A, Niino Y, Egolf L, Monetti C, Gu H, Mills M, Cheng A, Tasic B, Nguyen TN, Sunkin SM, Benucci A, Nagy A, Miyawaki A, Helmchen F, Empson RM, Knopfel T, Boyden ES, Reid RC, Carandini M, Zeng H. Neuron. 2015 Mar 4;85(5):942-58. doi: 10.1016/j.neuron.2015.02.022. 10.1016/j.neuron.2015.02.022 PubMed 25741722
