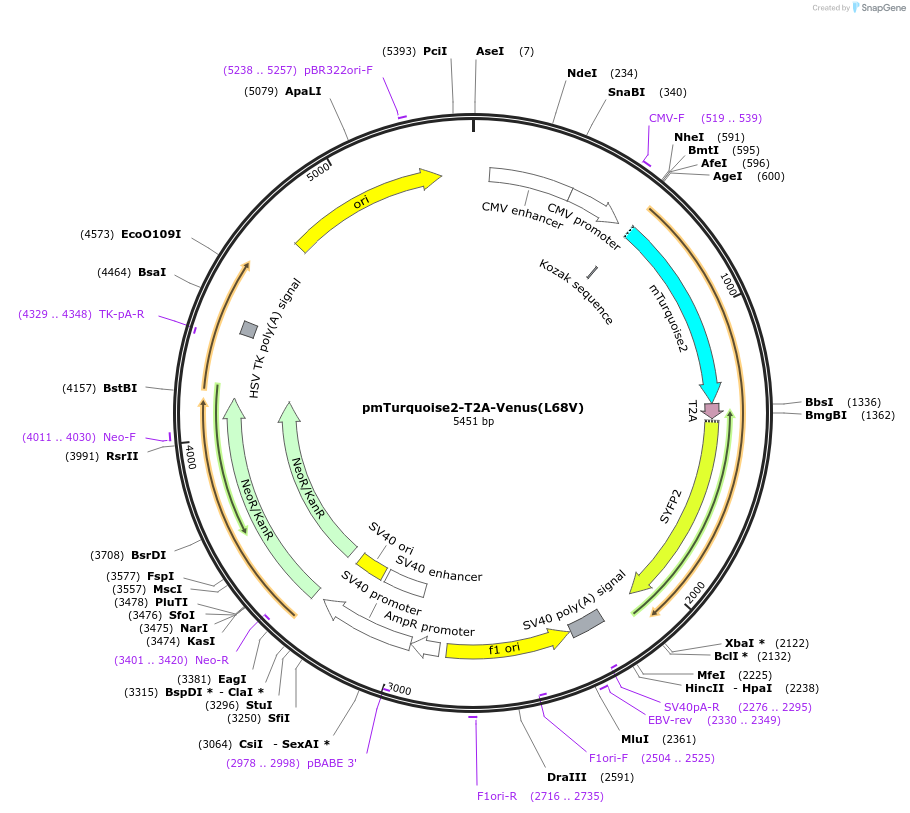

pmTurquoise2-T2A-Venus(L68V)
(Plasmid #60494)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 60494 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP-C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5441
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mTurquoise2-T2A-mVenus(L68V)
  • Alt name
    mTurquoise2 & SYFP2
  • Species
    Synthetic
  • Insert Size (bp)
    1497
  • Promoter CMV
  • Tag / Fusion Protein
    • T2A peptide

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site BsrGI (not destroyed)
  • 5′ sequencing primer CMV
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pmTurquoise2-T2A-Venus(L68V) was a gift from Dorus Gadella (Addgene plasmid # 60494 ; http://n2t.net/addgene:60494 ; RRID:Addgene_60494)
  • For your References section:

    Structure-guided evolution of cyan fluorescent proteins towards a quantum yield of 93%. Goedhart J, von Stetten D, Noirclerc-Savoye M, Lelimousin M, Joosen L, Hink MA, van Weeren L, Gadella TW Jr, Royant A. Nat Commun. 2012 Mar 20;3:751. doi: 10.1038/ncomms1738. 10.1038/ncomms1738 PubMed 22434194
