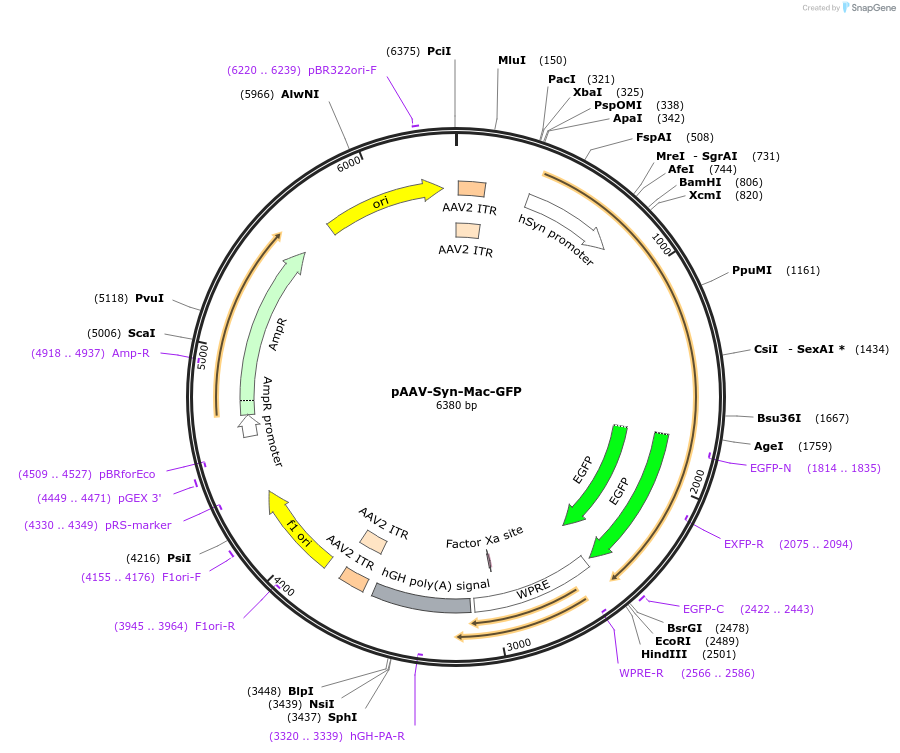

pAAV-Syn-Mac-GFP
(Plasmid #58853)

• Purpose: AAV-mediated expression of Mac-GFP under the Syn promoter
• Depositing Lab: Edward Boyden
• Publication: Chow et al Nature. 2010 Jan 7. 463(7277):98-102.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

Backbone

• Vector backbone: AAV
• Backbone size w/o insert (bp): 4708
• Total vector size (bp): 6379
• Vector type: Mammalian Expression, AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Growth instructions: Stbl3 at 30C (use carbenicillin if using Stbl3) OR DH5a at 37C
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: Mac-GFP
• Alt name: Leptosphaeria maculans opsin
• Species: Leptosphaeria maculans
• Insert Size (bp): 1671
• GenBank ID: GU045595.1
• Promoter: Syn
• Tag / Fusion Protein:
  • GFP (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamHI (not destroyed)
• 3′ cloning site: EcoRI (not destroyed)
• 5′ sequencing primer: CTGCGTATGAGTGCAAG
• 3′ sequencing primer: cagcgtatccacatagcg

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Plasmid is completely sequenced by the depositing lab except parts of the origin and both ITRs. Multiple digestions were done to verify the vector structure. The construct and the virus were both tested in vitro.
