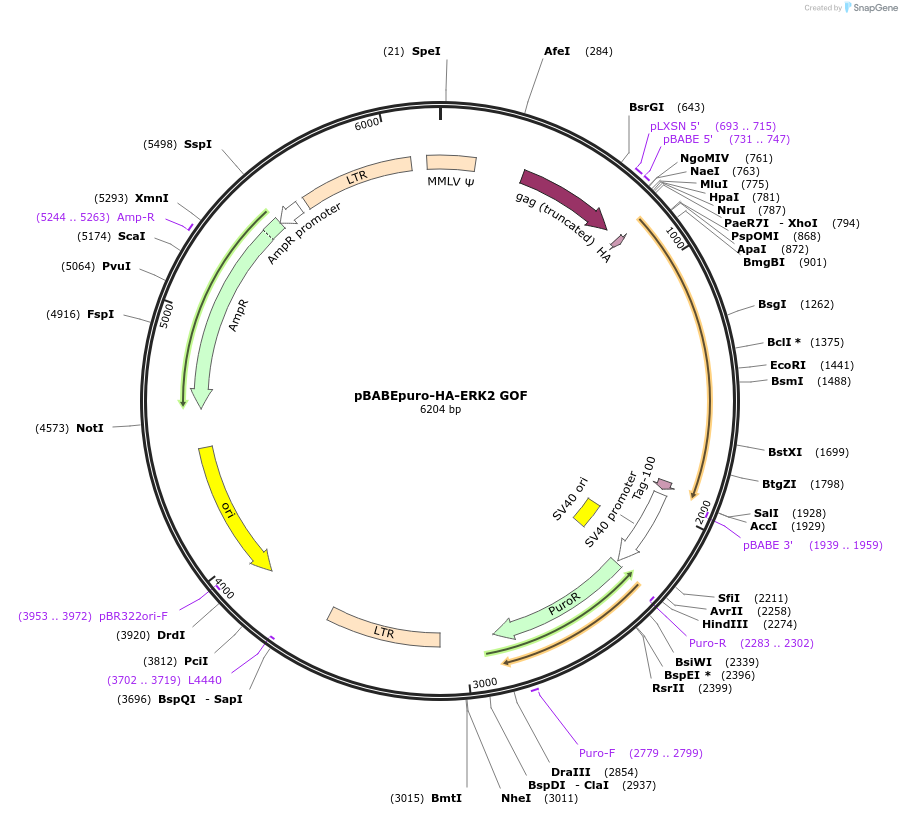

pBABEpuro-HA-ERK2 GOF
(Plasmid #53203)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 53203 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBABE puro
  • Backbone size w/o insert (bp) 5169
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL10 Gold
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ERK2
  • Alt name
    Extracellular signal regulated kinase 2
  • Alt name
    MAPK2
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1082
  • Mutation
    R67S/D321N
  • GenBank ID
    NM_138957.2
  • Entrez Gene
    MAPK1 (a.k.a. ERK, ERK-2, ERK2, ERT1, MAPK2, NS13, P42MAPK, PRKM1, PRKM2, p38, p40, p41, p41mapk, p42-MAPK)
  • Tag / Fusion Protein
    • HA (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (destroyed during cloning)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer CTTTATCCAGCCCTCAC
  • 3′ sequencing primer ACCCTAACTGACACACATTCC
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Addgene Plasmid 23498: pDONR223-MAPK1
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The sequence discrepancies found during the QC process have no functional consequence.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBABEpuro-HA-ERK2 GOF was a gift from Christopher Counter (Addgene plasmid # 53203 ; http://n2t.net/addgene:53203 ; RRID:Addgene_53203)
  • For your References section:

    Copper is required for oncogenic BRAF signalling and tumorigenesis. Brady DC, Crowe MS, Turski ML, Hobbs GA, Yao X, Chaikuad A, Knapp S, Xiao K, Campbell SL, Thiele DJ, Counter CM. Nature. 2014 Apr 9. doi: 10.1038/nature13180. 10.1038/nature13180 PubMed 24717435
