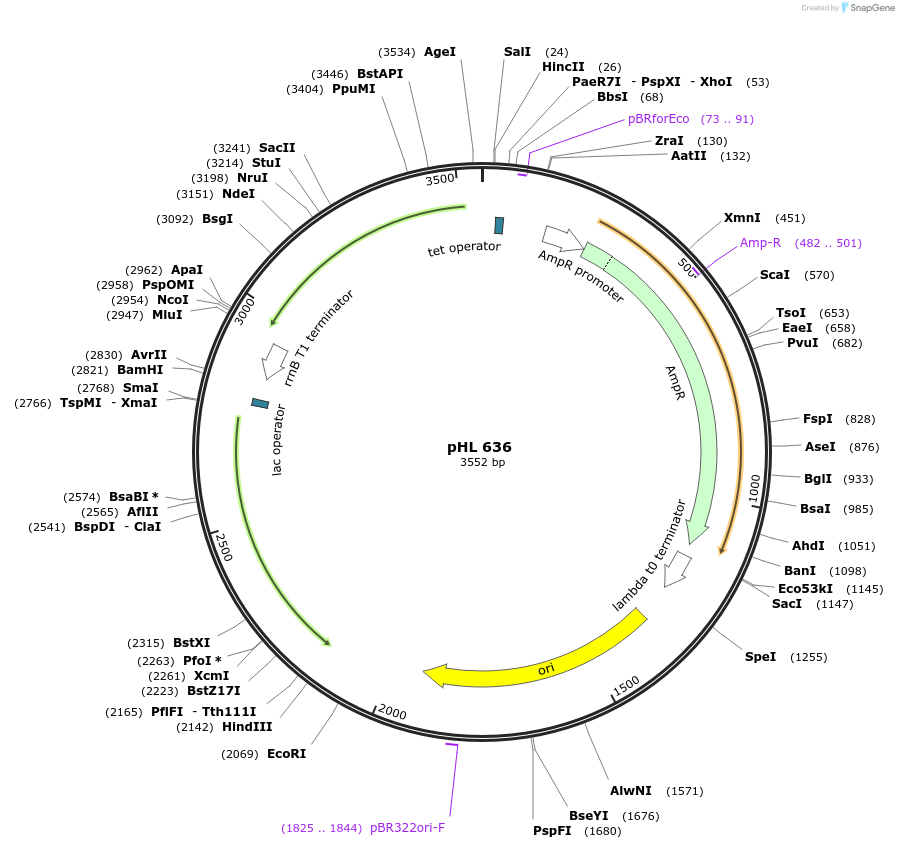

pHL 636
(Plasmid
#53015)
-
PurposeAmpR + PLtetO-1::RBS (st7) fimE::T1 terminator + PLlacO-1::RBS (st7) fimB::Asp terminator + ColE1
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 53015 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneunknown
-
Backbone manufacturerLim lab
-
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert namefimE
-
SpeciesE. coli
- Promoter pLtetO-1
-
Tags
/ Fusion Proteins
- RBS(st7) (N terminal on insert)
- T1 terminator (C terminal on insert)
Cloning Information for Gene/Insert 1
- Cloning method Unknown
- 5′ sequencing primer unknown (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert namefimB
-
SpeciesE. coli
- Promoter pLlacO-1
-
Tags
/ Fusion Proteins
- RBS(st7) (N terminal on insert)
- Asp terminator (C terminal on insert)
Cloning Information for Gene/Insert 2
- Cloning method Unknown
- 5′ sequencing primer unknown
- 3′ sequencing primer AspTerm (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pHL 636 was a gift from Han Lim (Addgene plasmid # 53015 ; http://n2t.net/addgene:53015 ; RRID:Addgene_53015)
