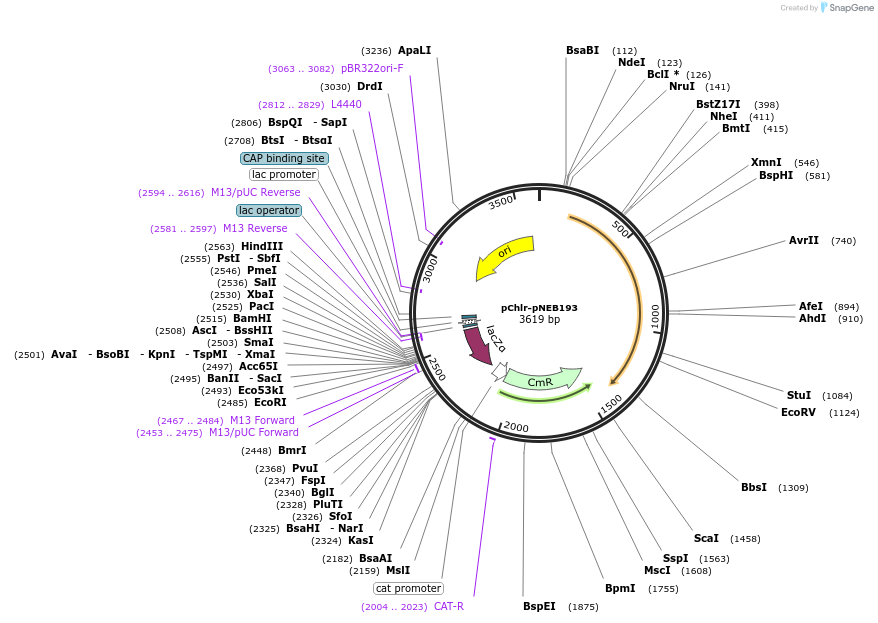

pChlr-pNEB193
(Plasmid
#52136)
-
Purpose(Empty Backbone) A backbone plasmid for creation of additional PUF repeat modules
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 52136 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepNEB193
-
Backbone manufacturerNew England Biolabs
- Backbone size (bp) 2280
-
Modifications to backboneReplaced the original ampicillin resistance gene Bla with the chloramphenicol resistance gene Cam from pACYC (New England Biolabs) using the Gibson Assembly method.
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Top10
-
Copy numberHigh Copy
Cloning Information
- 5′ sequencing primer M13 For
- 3′ sequencing primer M13 Rev (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please note that the plasmid contains a 1.3 kb insert containing Transposon 10 between bp# 51-52 of the original plasmid sequence. This insertion was not intentional, but does not affect the use of the plasmid to generate additional PUF repeat modules. Alternatively, any other PUF repeat plasmid can be similarly used to create new PUF repeate modules, since they all have the necessary SacI and HindIII sites.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pChlr-pNEB193 was a gift from Huimin Zhao (Addgene plasmid # 52136 ; http://n2t.net/addgene:52136 ; RRID:Addgene_52136) -
For your References section:
Modular assembly of designer PUF proteins for specific post-transcriptional regulation of endogenous RNA. Abil Z, Denard CA, Zhao H. J Biol Eng. 2014 Mar 1;8(1):7. 10.1186/1754-1611-8-7 PubMed 24581042
