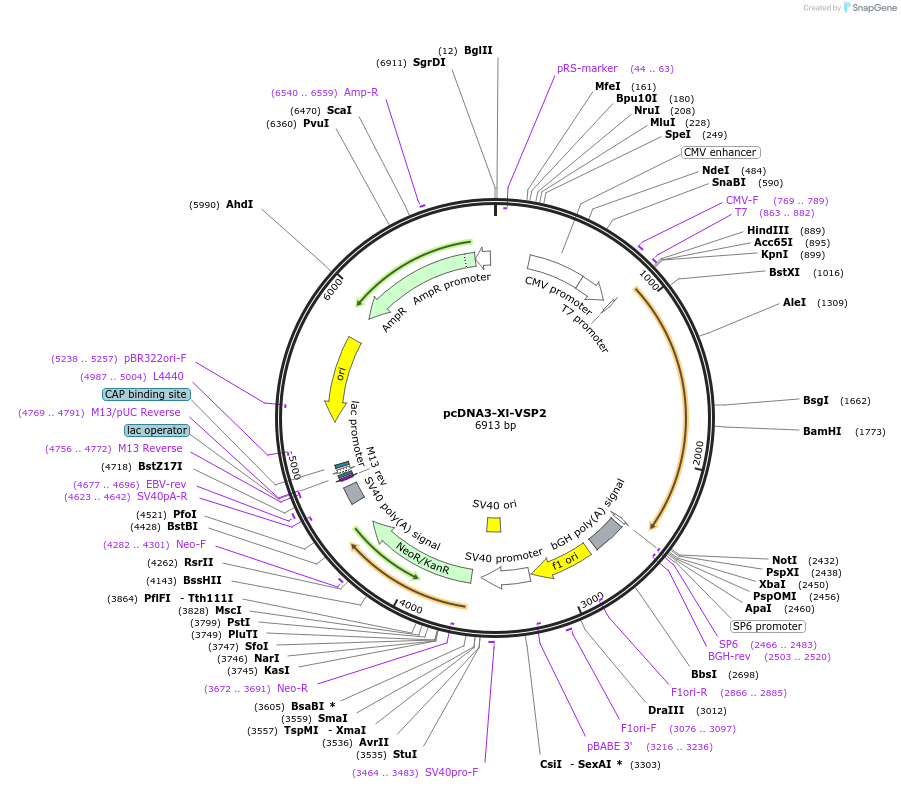

pcDNA3-Xl-VSP2
(Plasmid #51885)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 51885 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3
  • Backbone manufacturer
    Invitrogen
  • Vector type
    Mammalian Expression ; Xenopus oocyte expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    VSP2
  • Alt name
    voltage-sensitive phosphatase 2
  • Species
    X. laevis (frog)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH Reverse
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Plasmid encoding Xl-VSP2 (CF520610, clone # 7008398) was purchased from Open Biosystems (Huntsville, AL).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-Xl-VSP2 was a gift from Laurinda Jaffe (Addgene plasmid # 51885 ; http://n2t.net/addgene:51885 ; RRID:Addgene_51885)

  • For your References section:

    Voltage sensitive phosphoinositide phosphatases of Xenopus: their tissue distribution and voltage dependence. Ratzan WJ, Evsikov AV, Okamura Y, Jaffe LA. J Cell Physiol. 2011 Nov;226(11):2740-6. doi: 10.1002/jcp.22854. 10.1002/jcp.22854 PubMed 21618529
