Purposeencodes multiple copies of an epitope tag V5
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 59758 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-

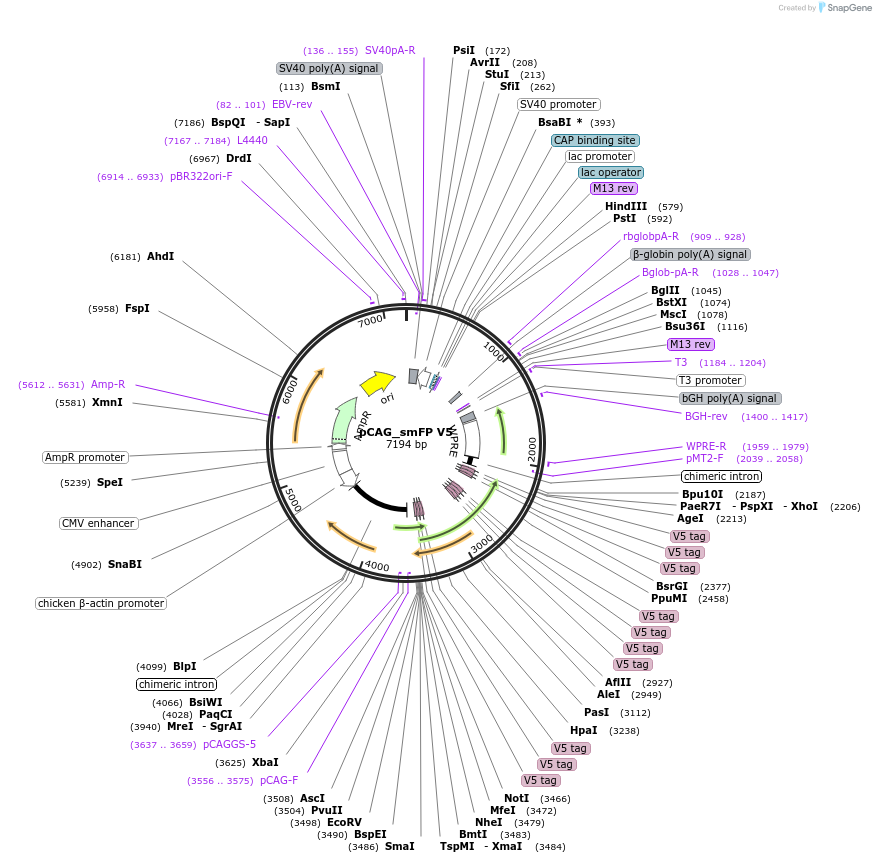

Vector backbonepCAG
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)XL1 Blue
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namesmFP _V5
-
SpeciesSynthetic
- Promoter CAG
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NotI (not destroyed)
- 3′ cloning site AgeI (not destroyed)
- 5′ sequencing primer GGTTCGGCTTCTGGCGTGTGACC
- 3′ sequencing primer ttaaagcagcgtatccacat (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG_smFP V5 was a gift from Loren Looger (Addgene plasmid # 59758 ; http://n2t.net/addgene:59758 ; RRID:Addgene_59758) -
For your References section:
High-performance probes for light and electron microscopy. Viswanathan S, Williams ME, Bloss EB, Stasevich TJ, Speer CM, Nern A, Pfeiffer BD, Hooks BM, Li WP, English BP, Tian T, Henry GL, Macklin JJ, Patel R, Gerfen CR, Zhuang X, Wang Y, Rubin GM, Looger LL. Nat Methods. 2015 Jun;12(6):568-76. doi: 10.1038/nmeth.3365. Epub 2015 Apr 27. 10.1038/nmeth.3365 PubMed 25915120
