Purpose(Empty Backbone) For in vitro transcription of sgRNA from the T7 promoter.
-
Depositing Lab
-

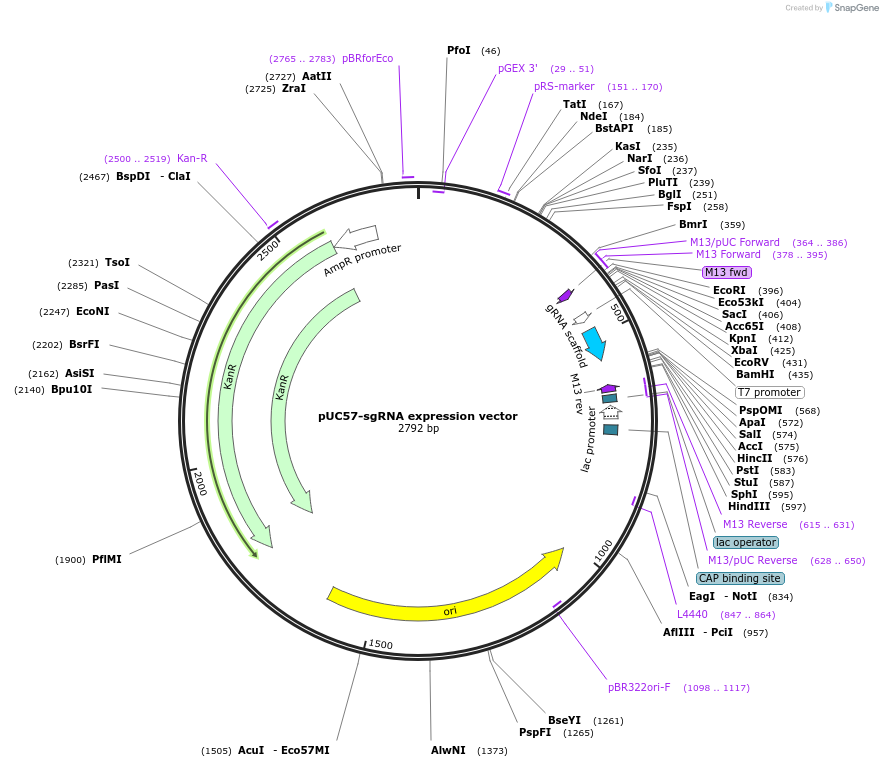

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 51132 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Cloning Grade DNA | 51132-DNA.cg | 2 µg of cloning grade DNA in Tris buffer | 1 | $105 |
Backbone
-
Vector backbonepUC57
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namesgRNA scaffold
- Promoter T7
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (not destroyed)
- 3′ cloning site BsaI (not destroyed)
- 5′ sequencing primer pBAC
- 3′ sequencing primer Lac-promoter (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Information for Cloning Grade DNA (Catalog # 51132-DNA.cg) ( Back to top)
Purpose
Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.
Delivery
- Amount 2 µg
- Guaranteed Concentration 100 ng/µl +/- 5 ng/µl
- Pricing $105 USD
- Storage DNA can be stored at 4℃ (short term) or -20℃ (long term).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Addgene has verified this plasmid using Next Generation Sequencing. Results are available here
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUC57-sgRNA expression vector was a gift from Xingxu Huang (Addgene plasmid # 51132 ; http://n2t.net/addgene:51132 ; RRID:Addgene_51132) -
For your References section:
Efficient genome modification by CRISPR-Cas9 nickase with minimal off-target effects. Shen B, Zhang W, Zhang J, Zhou J, Wang J, Chen L, Wang L, Hodgkins A, Iyer V, Huang X, Skarnes WC. Nat Methods. 2014 Mar 2. doi: 10.1038/nmeth.2857. 10.1038/nmeth.2857 PubMed 24584192
