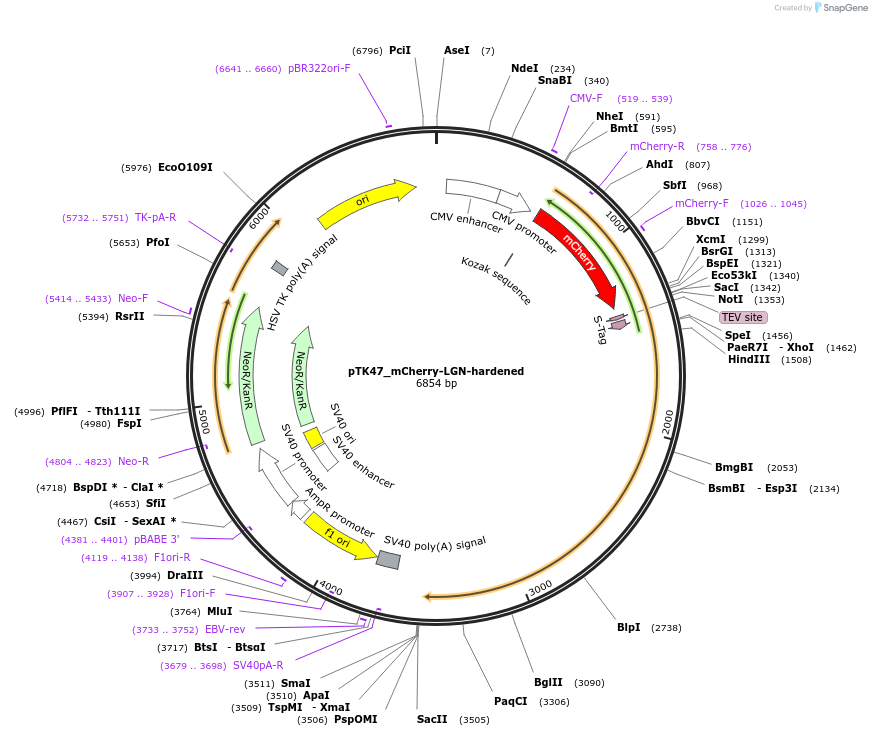

pTK47_mCherry-LGN-hardened
(Plasmid #46347)

• Purpose: rescues the phenotypes caused by LGN RNAi
• Depositing Lab: Iain Cheeseman
• Publication: Kiyomitsu et al Cell. 2013 Jul 18;154(2):391-402. doi: 10.1016/j.cell.2013.06.010.

Backbone

• Vector backbone: pEGFP-C1
• Total vector size (bp): 4800
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: LGN
• Alt name: GPSM2
• Species: H. sapiens (human)
• Insert Size (bp): 2000
• Mutation: siRNA resistant, gaGTtGacTgcTcgTTtA; deletion of S524
• GenBank ID: NP_037428.3
• Entrez Gene: GPSM2 (a.k.a. CMCS, DFNB82, LGN, PINS)
• Promoter: CMV
• Tag / Fusion Protein:
  • mCherry (N terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: XhoI (not destroyed)
• 3′ cloning site: SacII (not destroyed)
• 5′ sequencing primer: GGCATGGACGAGCTGTACAAG
• 3′ sequencing primer: GCATTCATTTTATGTTTCAGG

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry
