PurposeExpression of customizable guide RNA (gRNA) under cotnrol of murine U6 promoter, also contains a CMV-puro-t2A-mCherry expression cassette for mammalian gene knockdown
-
Depositing Lab
-

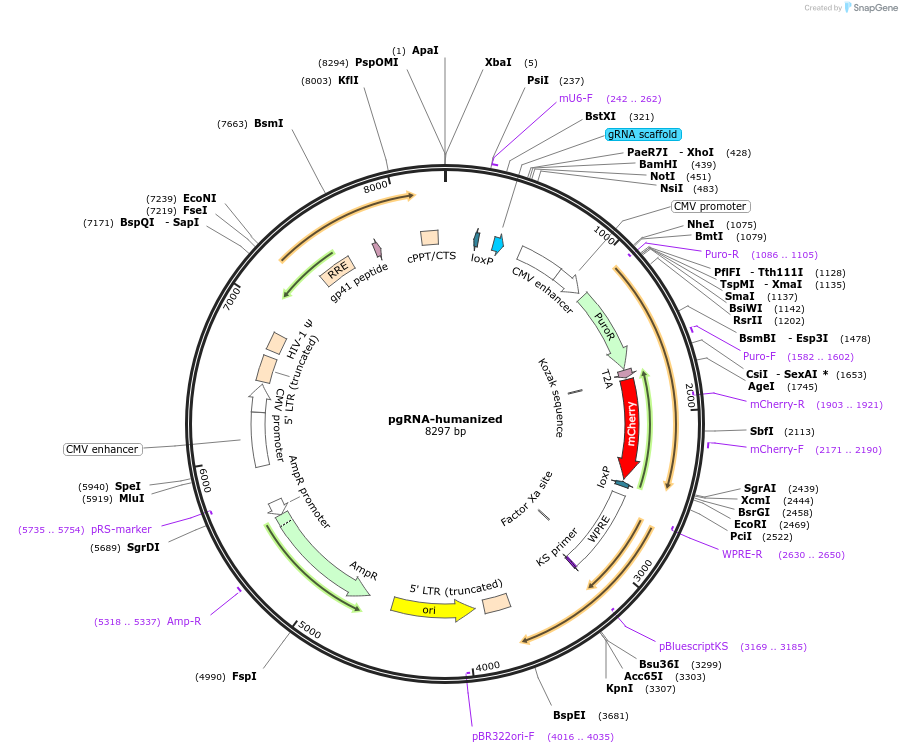

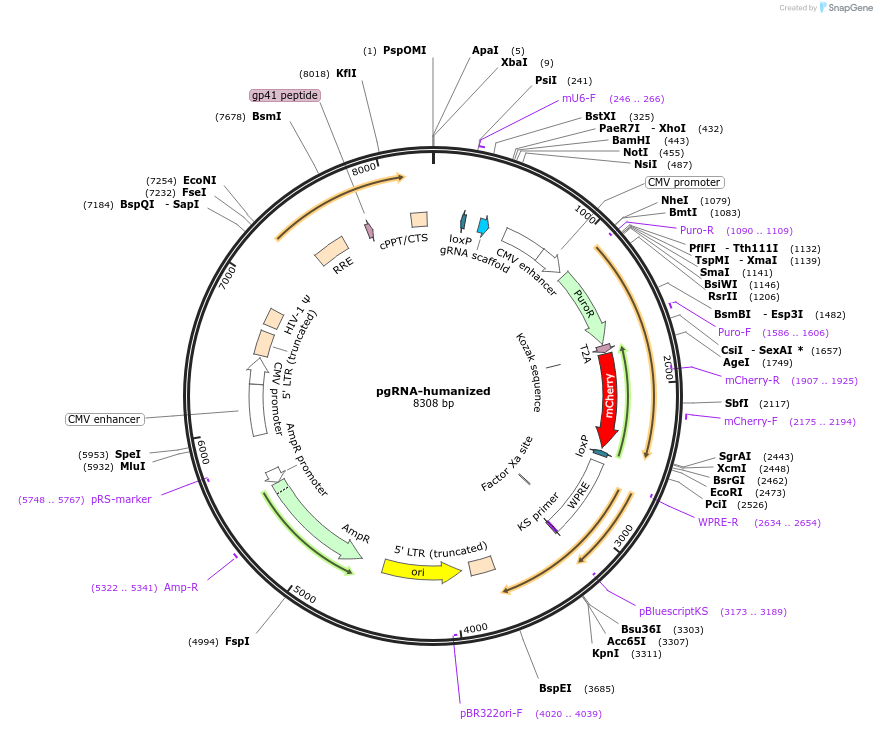

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 44248 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepU6
- Total vector size (bp) 8308
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameguide RNA
-
SpeciesH. sapiens (human)
-
Insert Size (bp)102
- Promoter mouse U6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BstXI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer n/a
- 3′ sequencing primer n/a (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
For more information on Qi Lab CRISPR Plasmids please refer to: http://www.addgene.org/crispr/qi/
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pgRNA-humanized was a gift from Stanley Qi (Addgene plasmid # 44248 ; http://n2t.net/addgene:44248 ; RRID:Addgene_44248) -
For your References section:
Repurposing CRISPR as an RNA-Guided Platform for Sequence-Specific Control of Gene Expression. Qi LS, Larson MH, Gilbert LA, Doudna JA, Weissman JS, Arkin AP, Lim WA. Cell. 2013 Feb 28;152(5):1173-83. doi: 10.1016/j.cell.2013.02.022. 10.1016/j.cell.2013.02.022 PubMed 23452860
