pFLLFLN
(Plasmid
#40030)
-
Depositing Lab
-
Publication
-

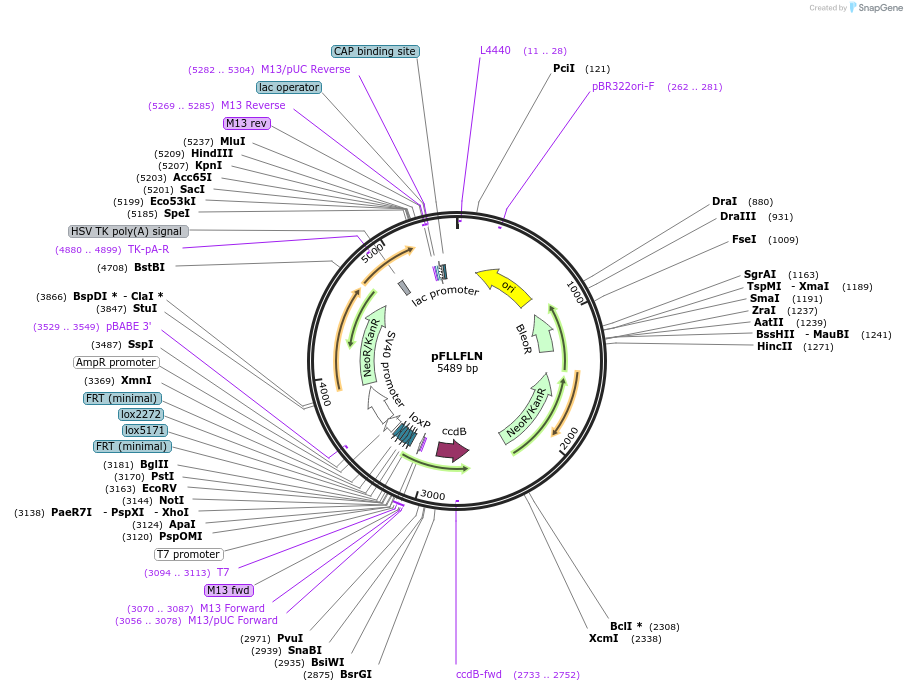

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 40030 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneUnknown
- Backbone size w/o insert (bp) 3500
- Total vector size (bp) 5489
-
Vector typeMammalian Expression, Bacterial Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert nameFRT-Lox5171-Lox2272-FRT-loxP
- Promoter None
Cloning Information for Gene/Insert 1
- Cloning method Unknown
- 5′ sequencing primer see sequence
- 3′ sequencing primer see sequence (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameNeo
-
Alt nameneomycin phosphotransferase
-
Alt nameneomycin resistance gene
- Promoter SV40
Cloning Information for Gene/Insert 2
- Cloning method Unknown
- 5′ sequencing primer see sequence
- 3′ sequencing primer see sequence (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Additional versions of this plasmid are available from Addgene: pLN and pFLN.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pFLLFLN was a gift from Liqun Luo (Addgene plasmid # 40030 ; http://n2t.net/addgene:40030 ; RRID:Addgene_40030) -
For your References section:
Extensions of MADM (Mosaic Analysis with Double Markers) in Mice. Tasic B, Miyamichi K, Hippenmeyer S, Dani VS, Zeng H, Joo W, Zong H, Chen-Tsai Y, Luo L. PLoS One. 2012;7(3):e33332. Epub 2012 Mar 27. 10.1371/journal.pone.0033332 PubMed 22479386
