pAAV-GFP
(Plasmid #32395)

• Depositing Lab: John T Gray
• Publication: Gray et al Methods Mol Biol. 2011;807:25-46.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

Backbone

• Vector backbone: pSub201
• Backbone size w/o insert (bp): 8310
• Vector type: Mammalian Expression, AAV ; Adeno-Associated Virus

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): Stbl2
• Growth instructions: Users must confirm the absence of deletions (recombinations) in this vector by diagnostic digests. (1) A SmaI digest should produce the following pattern of bands: 3654 bp, 1716 bp and 1500 bp. (2) An AhdI digest should produce the following pattern of bands: 3183 bp, 2582 bp and 1127 bp. Please consult the associated publication listed below for an example gel image.
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: GFP
• Promoter: CMV

Cloning Information

• Cloning method: Restriction Enzyme

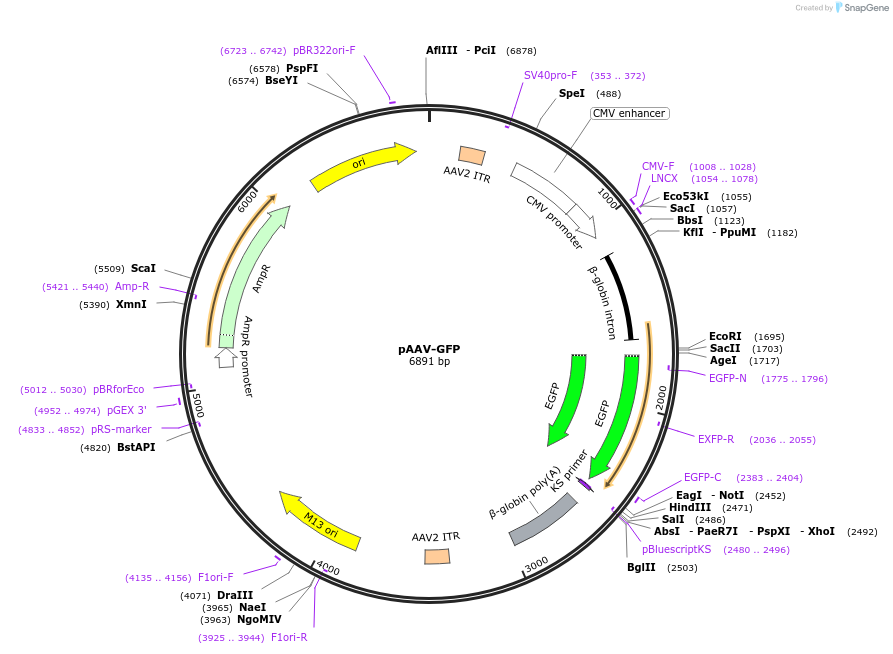

• 5′ cloning site: Multiple (see map) (not destroyed)
• 3′ cloning site: Multiple (see map) (not destroyed)
• 5′ sequencing primer: GGCCCTTTTGCTAATCATGTTCATACCTCTTATCT
• 3′ sequencing primer: GGCCAGGGCATTAGCCACACCAG

Resource Information

• Supplemental Documents:
  • LaserGene SeqBuilder file for pAAV-GFP
• Addgene Notes:
  • Addgene Diagnostic Digest for 32395 with SmaI
  • Addgene Diagnostic Digest for 32395 with AhdI
• A portion of this plasmid was derived from a plasmid made by: This plasmid was received by Dr. Gray’s lab from the Richard Mulligan lab of Harvard University.
• Articles Citing this Plasmid:
  • 12 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Please see Notes from Addgene link above for Addgene's diagnostic digests of this plasmid with AhdI and SmaI.
