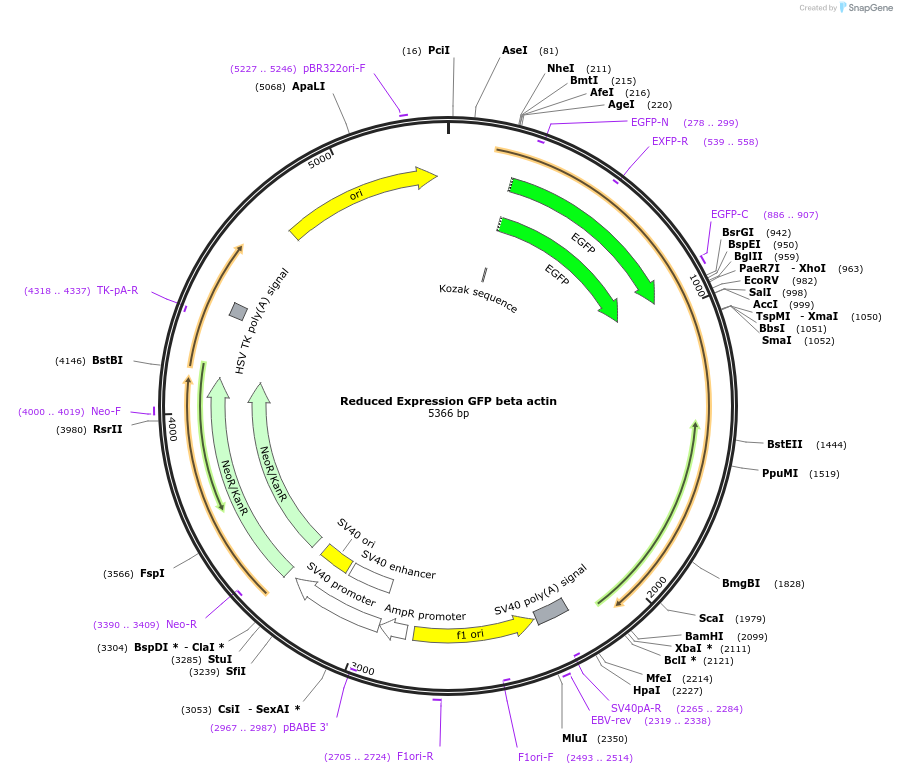

Reduced Expression GFP beta actin
(Plasmid #31502)

• Depositing Labs: Rick Horwitz, Tim Mitchison
• Publication: Watanabe et al Science. 2002 Feb 8. 295(5557):1083-6.

Backbone

• Vector backbone: pEGFP-C1
• Backbone manufacturer: Clontech
• Backbone size w/o insert (bp): 4250
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: beta actin
• Species: H. sapiens (human)
• Insert Size (bp): 1100
• Mutation: 91-544 of enhancer region of CMV promoter deleted
• GenBank ID: NM_001101
• Entrez Gene: ACTB (a.k.a. BKRNS, BNS, BRWS1, CSMH, DDS1, PS1TP5BP1, THC8)
• Tag / Fusion Protein:
  • EGFP (N terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: XhoI (not destroyed)
• 3′ cloning site: BamHI (not destroyed)
• 5′ sequencing primer: EGFP-C

Resource Information

• Articles Citing this Plasmid:
  • 9 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
