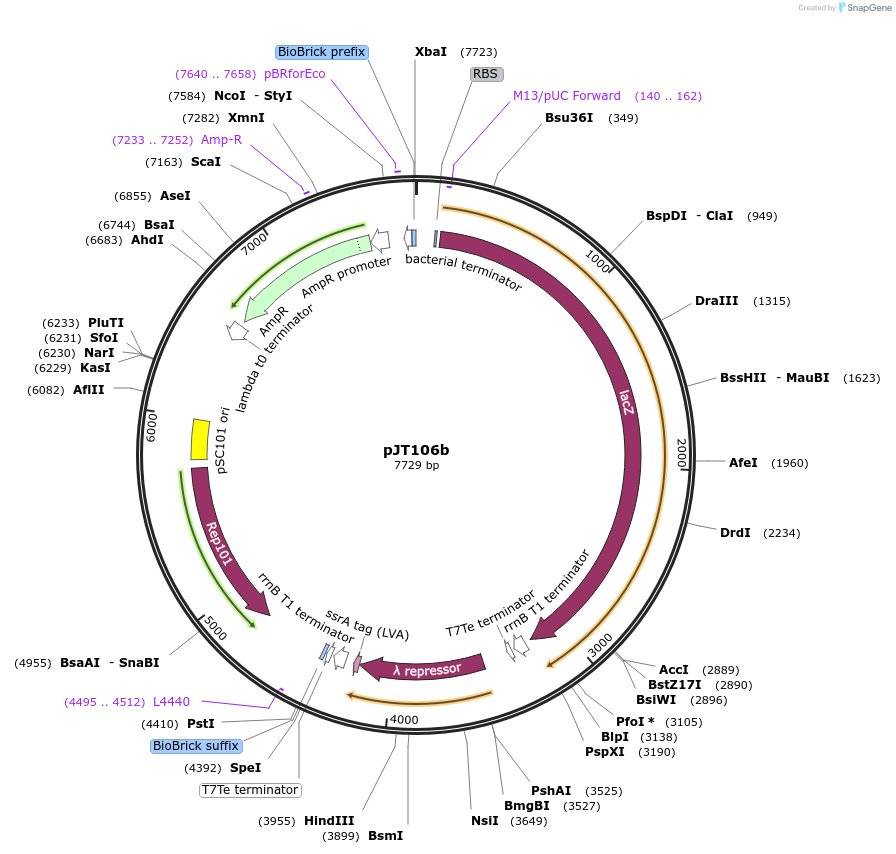

pJT106b
(Plasmid #31392)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 31392 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    BioBrick vector pSB4A3
  • Backbone manufacturer
    BioBrick vector-Shetty et al 2008
  • Backbone size w/o insert (bp) 4392
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    red light inverter
  • Species
    E.coli
  • Insert Size (bp)
    4391

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJT106b was a gift from Christopher Voigt (Addgene plasmid # 31392 ; http://n2t.net/addgene:31392 ; RRID:Addgene_31392)
  • For your References section:

    Multichromatic control of gene expression in Escherichia coli. Tabor JJ, Levskaya A, Voigt CA. J Mol Biol. 2011 Jan 14. 405(2):315-24. 10.1016/j.jmb.2010.10.038 PubMed 21035461
