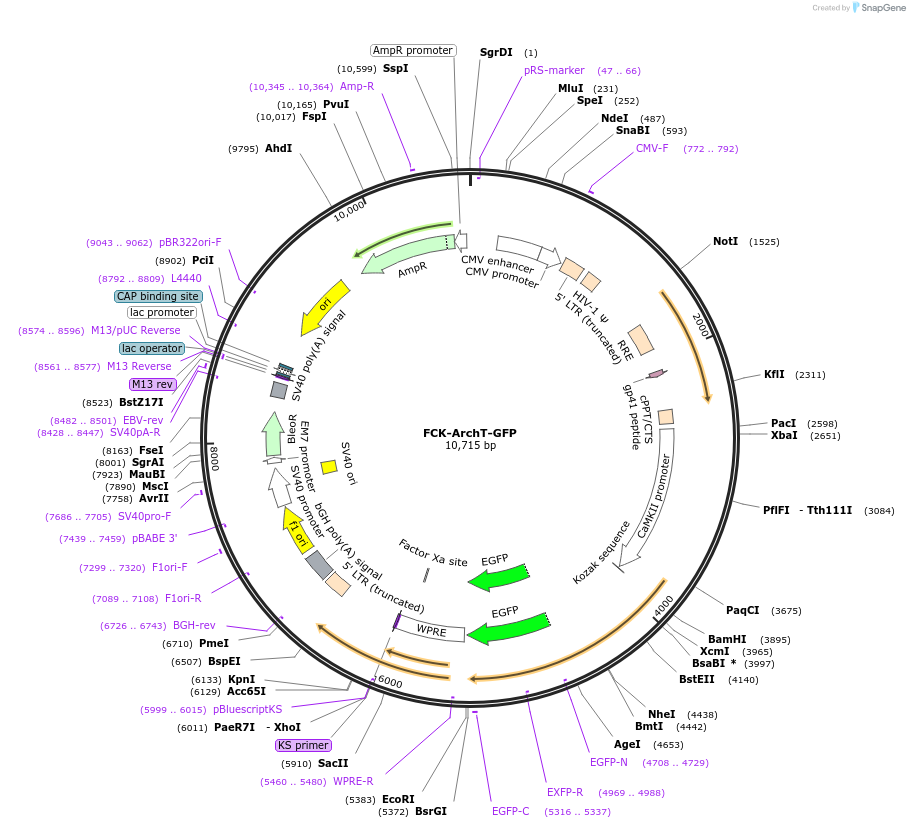

FCK-ArchT-GFP
(Plasmid #31177)

• Purpose: Lentiviral expression of ArchT-GFP for neuronal inhibition
• Depositing Lab: Edward Boyden
• Publication: Han et al Front Syst Neurosci. 2011;5:18. Epub 2011 Apr 13.

Backbone

• Vector backbone: FCK(1.3)GW
• Backbone manufacturer: Pavel Osten
• Backbone size w/o insert (bp): 9239
• Vector type: Mammalian Expression, Lentiviral

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): Stbl3
• Growth instructions: Use recombinase-free E. coli (e.g., Invitrogen's Stbl3)
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: ArchT-GFP
• Alt name: ArchT
• Alt name: archaerhodopsin TP009
• Alt name: archaerhodopsin
• Species: H. strain TP009
• Insert Size (bp): 1476
• Promoter: CaMKII
• Tag / Fusion Protein:
  • GFP (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamHI (not destroyed)
• 3′ cloning site: EcoRI (not destroyed)
• 5′ sequencing primer: cccaagctcgtcaatcaagc

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

PLEASE CONTACT ED BOYDEN () FOR DETAILS ON THIS REAGENT AND FURTHER REAGENTS IN THIS LINE.
