pLR-NN
(Plasmid
#31017)
-
Depositing Labs
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 31017 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

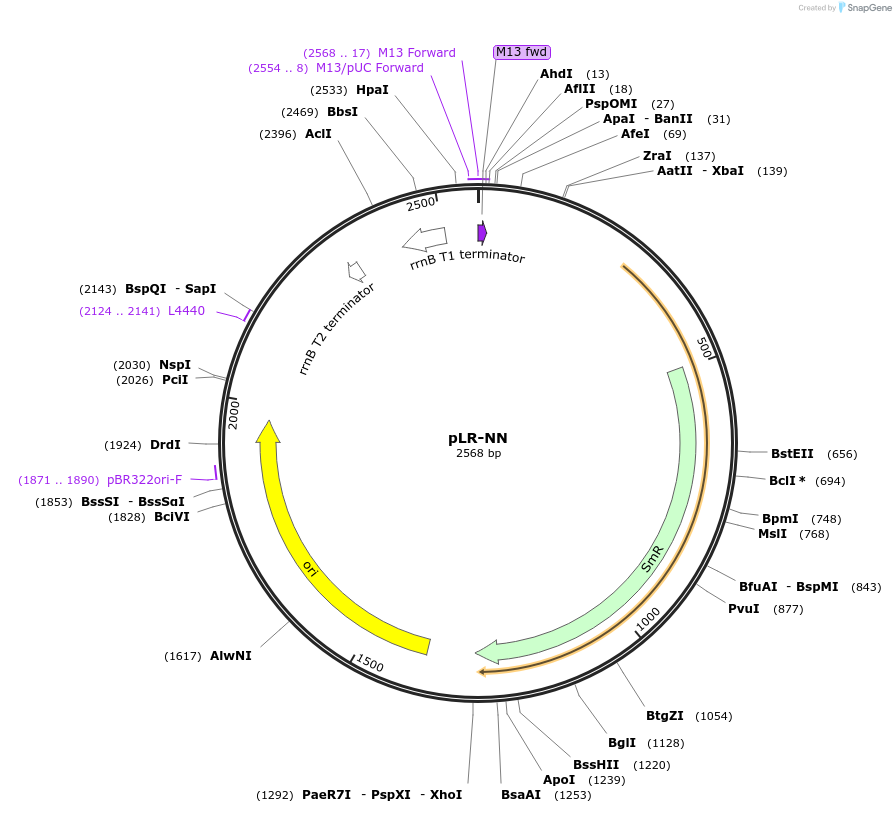

Backbone
-
Vector backbonepCS468
- Backbone size w/o insert (bp) 2460
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsDH10B/LB+antibiotics
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namelast NN repeat
-
SpeciesXanthamonas oryzae
-
Insert Size (bp)107
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site ApaI (not destroyed)
- 3′ cloning site XbaI (not destroyed)
- 5′ sequencing primer pTC14_F1 (cctactcaggagagcgttca) (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLR-NN was a gift from Adam Bogdanove & Daniel Voytas (Addgene plasmid # 31017 ; http://n2t.net/addgene:31017 ; RRID:Addgene_31017) -
For your References section:
Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller JA, Somia NV, Bogdanove AJ, Voytas DF. Nucleic Acids Res. 2011 Jul;39(12):e82. doi: 10.1093/nar/gkr218 10.1093/nar/gkr218 PubMed 21493687
