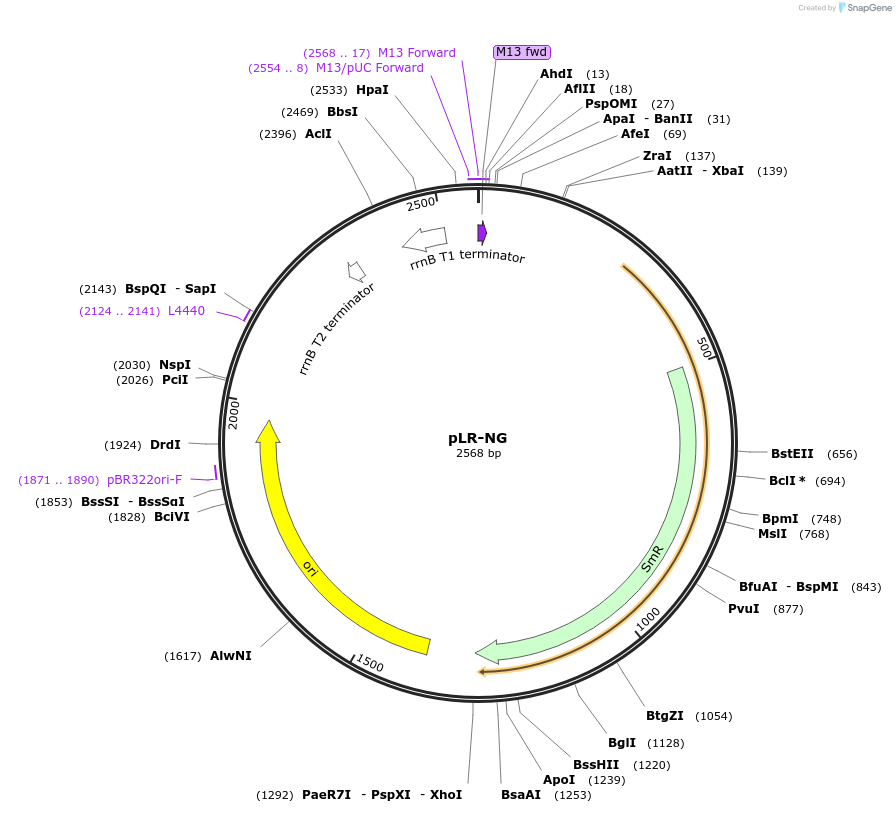

pLR-NG
(Plasmid #30995)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 30995 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCS468
  • Backbone size w/o insert (bp) 2460

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    DH5a/LB+antibiotics
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    last NG repeat
  • Species
    Xanthamonas oryzae
  • Insert Size (bp)
    107

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site ApaI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer pTC14_F1 (cctactcaggagagcgttca)
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLR-NG was a gift from Adam Bogdanove & Daniel Voytas (Addgene plasmid # 30995 ; http://n2t.net/addgene:30995 ; RRID:Addgene_30995)
  • For your References section:

    Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller JA, Somia NV, Bogdanove AJ, Voytas DF. Nucleic Acids Res. 2011 Jul;39(12):e82. doi: 10.1093/nar/gkr218 10.1093/nar/gkr218 PubMed 21493687
