Purpose(Empty Backbone)
-
Depositing Lab
-
Publication
-

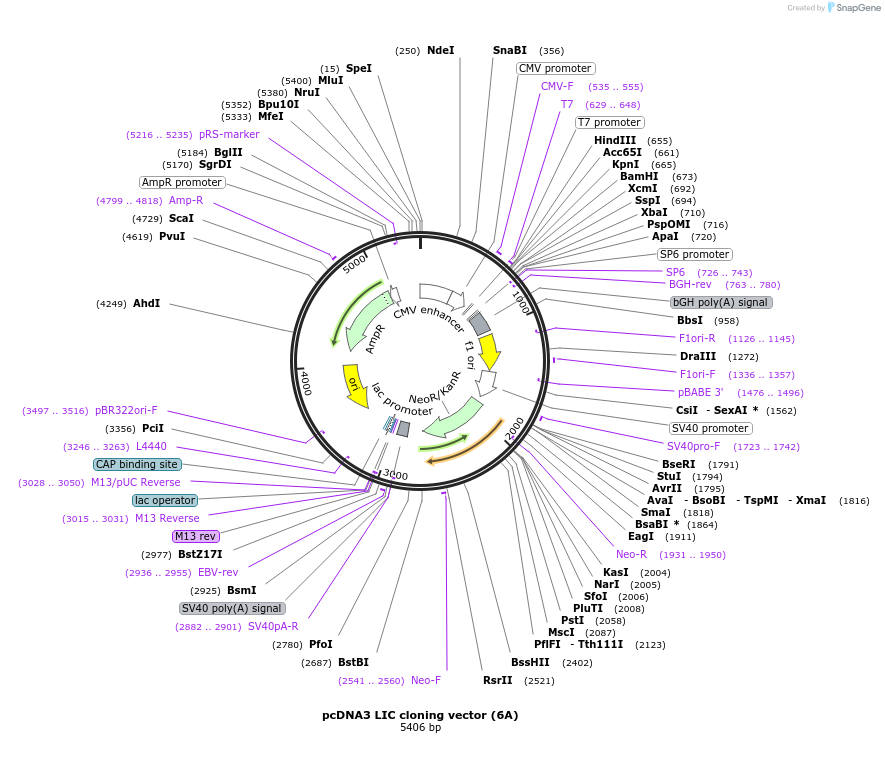

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 30124 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepcDNA3
- Backbone size (bp) 5407
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site LIC site (destroyed during cloning)
- 3′ cloning site LIC site (destroyed during cloning)
- 5′ sequencing primer CMV F (5'cgcaaatgggcggtaggcgtg)
- 3′ sequencing primer CMV R (5'tggctggcaactagaagg) (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This is a LIC vector derived from pcDNA3. It adds no tags to your protein of interest.
To clone into this vector, add the following tags to your PCR primers:
LIC vKoz Forward tag 5’-TACTTCCAATCCAATGCCACC(ATG)
LicV1 Reverse tag 5’-TTATCCACTTCCAATGTTATTA
T4-treat PCR with dCTP. Linearize vector with SspI, then T4-treat with dGTP. Can verify the presence of insert by digesting with HindIII and XbaI.
For more information, please see our website:
http://qb3.berkeley.edu/qb3/macrolab/
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3 LIC cloning vector (6A) was a gift from Scott Gradia (Addgene plasmid # 30124 ; http://n2t.net/addgene:30124 ; RRID:Addgene_30124)
