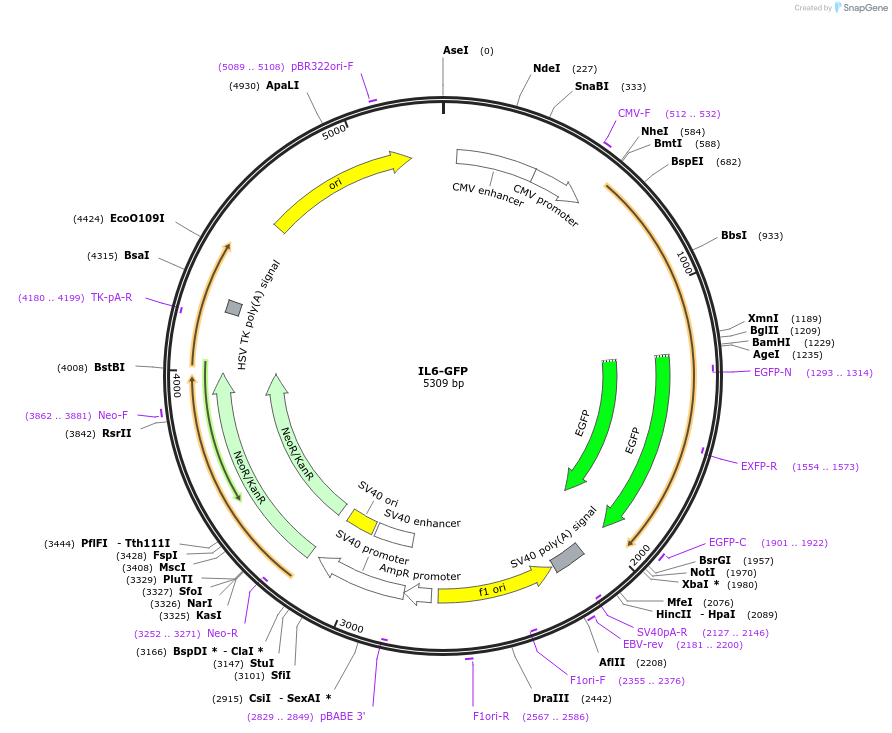

IL6-GFP
(Plasmid #28088)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 28088 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4700
  • Vector type
    Mammalian Expression
  • Selectable markers
    Gentamicin

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    IL6
  • Alt name
    mouseinterleukin-6
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    645
  • GenBank ID
    X54542
  • Entrez Gene
    Il6 (a.k.a. Il-6)
  • Tag / Fusion Protein
    • GFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CGC C gctagc CA CCA TGA AGT TCC TCT CTG
  • 3′ sequencing primer GAG T ggatccc GTG T TTG CCG AGT AGA TCT CAA
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Uwa Dressel (G.Muscat laboratory)university of Queensland,IMB,Brisbane ,Australia
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    IL6-GFP was a gift from Jennifer Stow (Addgene plasmid # 28088)

  • For your References section:

    Subcompartments of the macrophage recycling endosome direct the differential secretion of IL-6 and TNFalpha. Manderson AP, Kay JG, Hammond LA, Brown DL, Stow JL. J Cell Biol. 2007 Jul 2. 178(1):57-69. 10.1083/jcb.200612131 PubMed 17606866
