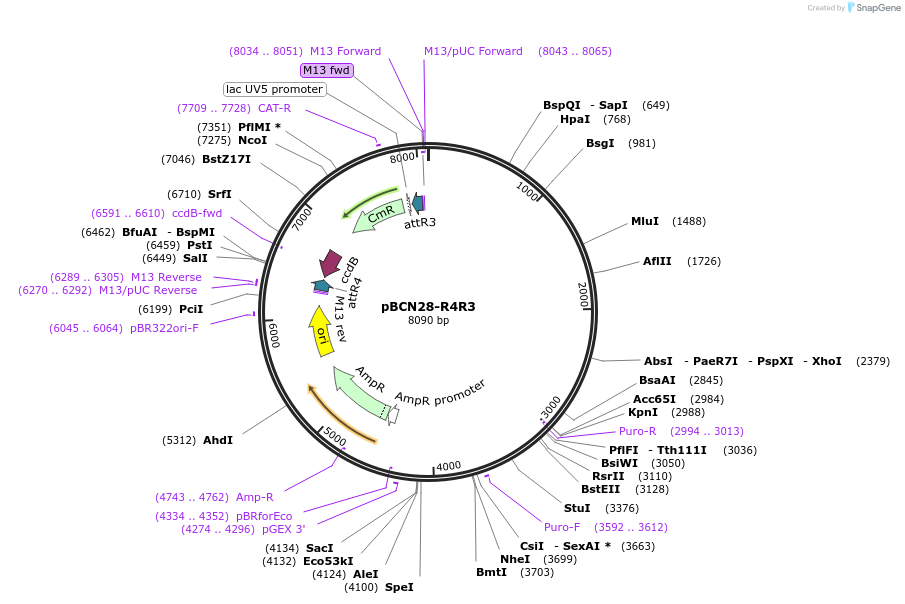

pBCN28-R4R3
(Plasmid #26303)

• Purpose: (Empty Backbone)
• Depositing Lab: Ben Lehner
• Publication: Semple et al Nat Methods. 2010 Aug 22. ():.

Backbone

• Vector backbone: pCG150
• Backbone size (bp): 8090
• Vector type: Worm Expression
• Selectable markers: Puromycin

Growth in Bacteria

• Bacterial Resistance(s): Chloramphenicol and Ampicillin, 25 & 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DB3.1
• Growth instructions: Use DB3.1 E. coli (must be ccdB resistant). Note that ccdB Survival bacteria (Invitrogen) do not work for this plasmid.
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: None

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: AttR4 (destroyed during cloning)
• 3′ cloning site: AttR3 (destroyed during cloning)
• 5′ sequencing primer: M13 Reverse
• 3′ sequencing primer: M13 (-21) Forward

Resource Information

• A portion of this plasmid was derived from a plasmid made by: Puromycin resistance gene from pBabePuro (Addgene). rpl-28 promoter and let-858 3'UTR sequences from pPD129.57 vector (Addgene). mCherry gene from pGH8 (Addgene).

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Use for puromycin selection of transgenes in Caenorhabditis species other than C. elegan (works also in C. elegans).
This vector is the same as pBCN22-R4R3 but with a different Pmyo-2::mCherry::unc-54_3'UTR construct that gives good fluoresence expression in the pharynx of C. elegans as well as other species, e.g. C. briggsae, C. remanei and C. brenneri.
This is a Gateway 3-fragment compatible destination vector.
It contains AttR4 and AttR3 sites (not AttR1 and AttR2 sites as identified automatically by the Addgene algorithm).
