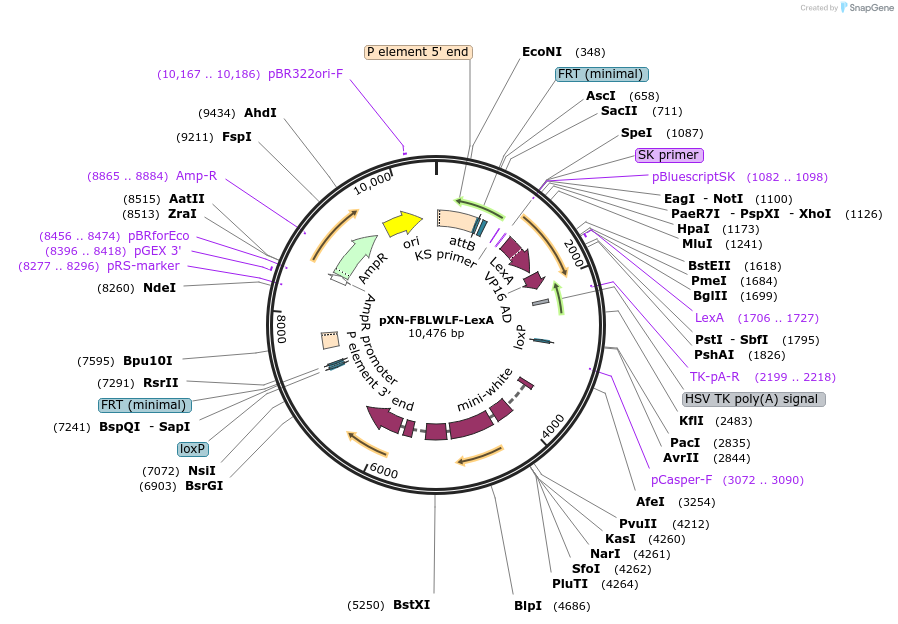

pXN-FBLWLF-LexA
(Plasmid #26266)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 26266 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pXN-FBLWLF
  • Backbone size w/o insert (bp) 8757
  • Vector type
    Bacterial Expression, Insect Expression ; Drosophila transgenesis

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    LexA
  • Species
    E. coli
  • Insert Size (bp)
    1471

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site PacI (not destroyed)
  • 5′ sequencing primer CAGTGCACGTTTGCTTGTTGA
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pXN-FBLWLF-LexA was a gift from Tom Clandinin (Addgene plasmid # 26266 ; http://n2t.net/addgene:26266 ; RRID:Addgene_26266)

  • For your References section:

    A versatile in vivo system for directed dissection of gene expression patterns. Gohl DM, Silies MA, Gao XJ, Bhalerao S, Luongo FJ, Lin CC, Potter CJ, Clandinin TR. Nat Methods. 2011 Mar;8(3):231-7. doi: 10.1038/nmeth.1561. 10.1038/nmeth.1561 PubMed 21473015
