pRAM24
(Plasmid
#234313)
-
PurposepBBR1 origin cat-RNA U1376
-
Depositing Lab
-

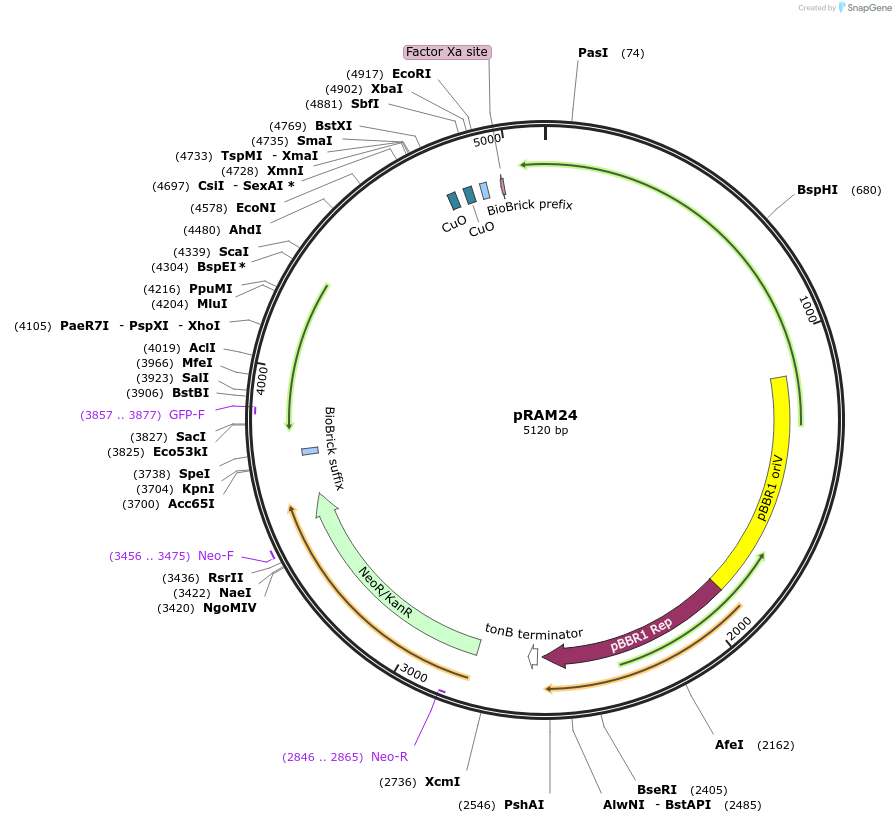

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 234313 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBBR1
- Backbone size w/o insert (bp) 2820
- Total vector size (bp) 4007
-
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameU1367 Targeting RAM, Barcode 1
-
SpeciesSynthetic
-
Insert Size (bp)1112
- Promoter P. CymRC
Cloning Information
- Cloning method Golden Gate
- 5′ sequencing primer Na (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2023.04.16.536800 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRAM24 was a gift from James Chappell (Addgene plasmid # 234313 ; http://n2t.net/addgene:234313 ; RRID:Addgene_234313) -
For your References section:
Information storage across a microbial community using universal RNA barcoding. Kalvapalle PB, Staubus A, Dysart MJ, Gambill L, Reyes Gamas K, Lu LC, Silberg JJ, Stadler LB, Chappell J. Nat Biotechnol. 2025 Mar 18. doi: 10.1038/s41587-025-02593-0. 10.1038/s41587-025-02593-0 PubMed 40102641
