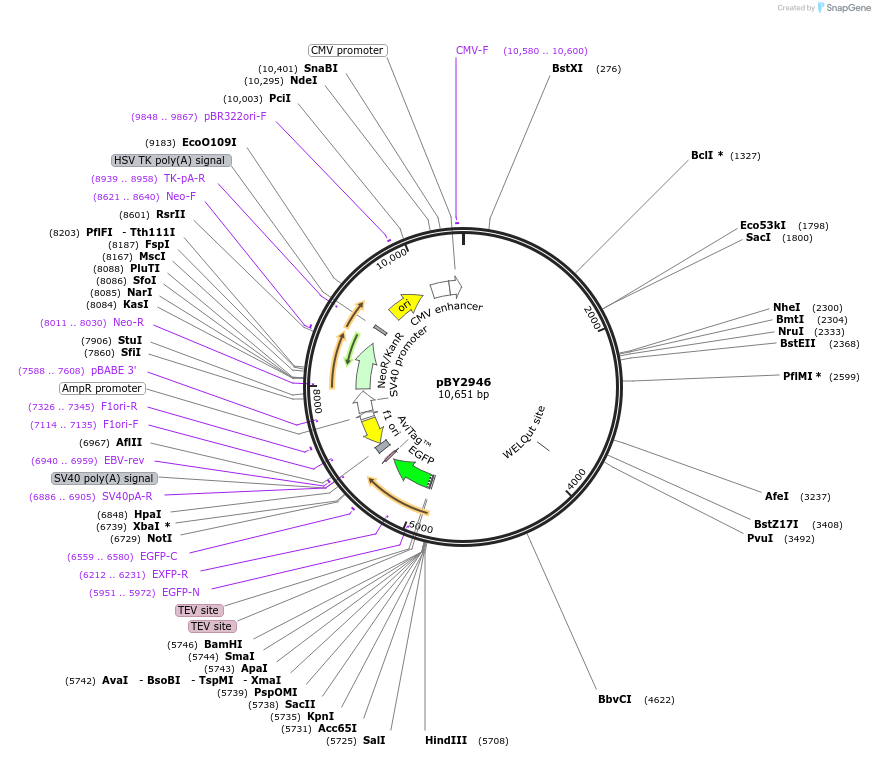

pBY2946
(Plasmid #23223)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 23223 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    EGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 9674
  • Vector type
    Worm Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SnAvi
  • Species
    C. elegans (nematode); artifical
  • Insert Size (bp)
    977

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer GAAAGAACATTGATGGGGAG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

this plasmid encodes the new described SnAvi tag and additionally the unc-119 rescue sequence from C. elegans (bp4-5705)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBY2946 was a gift from Ralf Baumeister (Addgene plasmid # 23223 ; http://n2t.net/addgene:23223 ; RRID:Addgene_23223)

  • For your References section:

    SnAvi - a new tandem tag for high-affinity protein-complex purification. Schaffer U, Schlosser A, Muller KM, Schafer A, Katava N, Baumeister R, Schulze E. Nucleic Acids Res. 2010 Jan 4. ():. 10.1093/nar/gkp1178 PubMed 20047968
