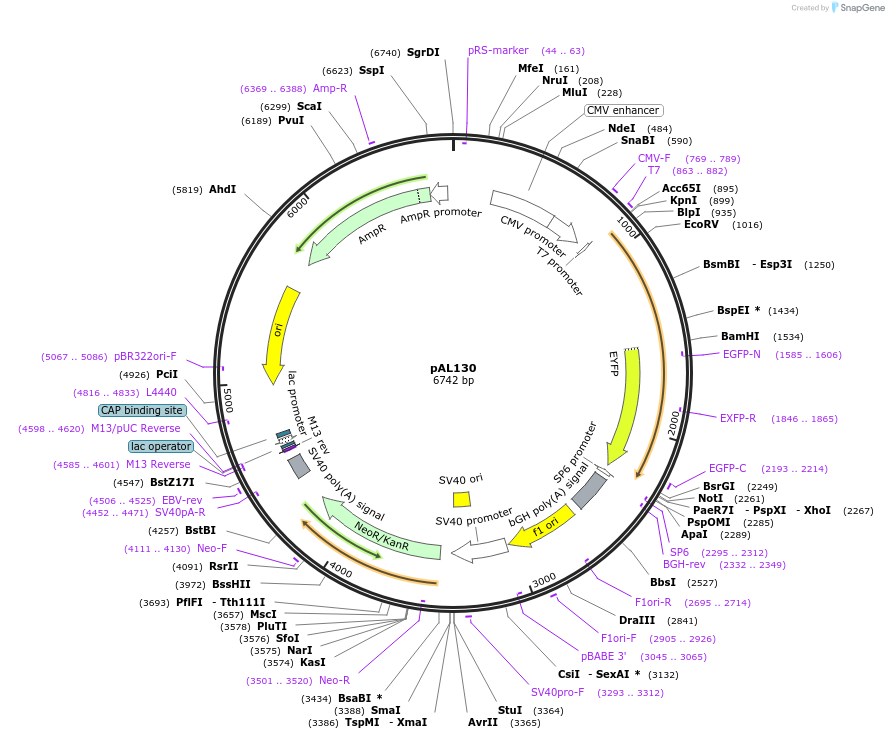

pAL130
(Plasmid #22475)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 22475 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5369
  • Vector type
    Mammalian Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PIF3NT
  • Alt name
    Pif3
  • Species
    M. musculus (mouse), A. thaliana (mustard weed)
  • Insert Size (bp)
    1373
  • Entrez Gene
    PIF3 (a.k.a. AT1G09530, F14J9.19, F14J9_19, PAP3, PHOTOCURRENT 1, PHYTOCHROME INTERACTING FACTOR 3, PHYTOCHROME-ASSOCIATED PROTEIN 3, POC1, phytochrome interacting factor 3, purple acid phosphatase 3)
  • Promoter CMV
  • Tag / Fusion Protein
    • mYFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Kpn1 (not destroyed)
  • 3′ cloning site Not1 (not destroyed)
  • 5′ sequencing primer T7
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAL130 was a gift from Christopher Voigt (Addgene plasmid # 22475 ; http://n2t.net/addgene:22475 ; RRID:Addgene_22475)

  • For your References section:

    Spatiotemporal control of cell signalling using a light-switchable protein interaction. Levskaya A, Weiner OD, Lim WA, Voigt CA. Nature. 2009 Oct 15;461(7266):997-1001. 10.1038/nature08446 PubMed 19749742
