pENTRegfp3
(Plasmid
#22464)
-
Depositing Lab
-
Publication
-

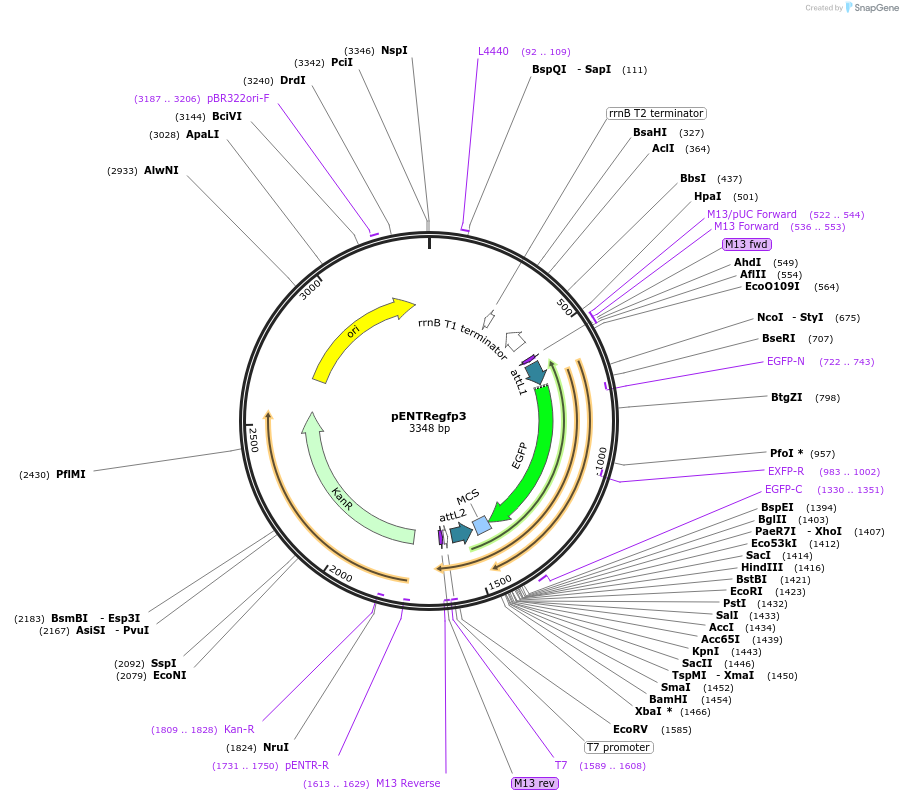

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 22464 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepDONR
- Backbone size w/o insert (bp) 5000
-
Vector typeEntry clone
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameEGFP
-
Insert Size (bp)700
-
Entrez GeneeGFP (a.k.a. pPRS3a_01)
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer M13_puc_F
- 3′ sequencing primer T7 (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Egfp ORF was amplified with an attB1 site on the 5’ end and an attB2 site on the 3’ end. ORF is in frame with 3’ entry clone.
Egfp ORF missing the termination codon.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pENTRegfp3 was a gift from Nathan Lawson (Addgene plasmid # 22464 ; http://n2t.net/addgene:22464 ; RRID:Addgene_22464) -
For your References section:
Gateway compatible vectors for analysis of gene function in the zebrafish. Villefranc JA, Amigo J, Lawson ND. Dev Dyn. 2007 Nov . 236(11):3077-87. 10.1002/dvdy.21354 PubMed 17948311
