pCDH-EF1-E-NoMi-P2A-CopGFP-T2A-PuroR
(Plasmid
#207805)
-
PurposeE-NoMi is a re-engineered tetraspanin scaffold tagged with bioluminescent and fluorescent reporter proteins under an EF-1α promoter.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 207805 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

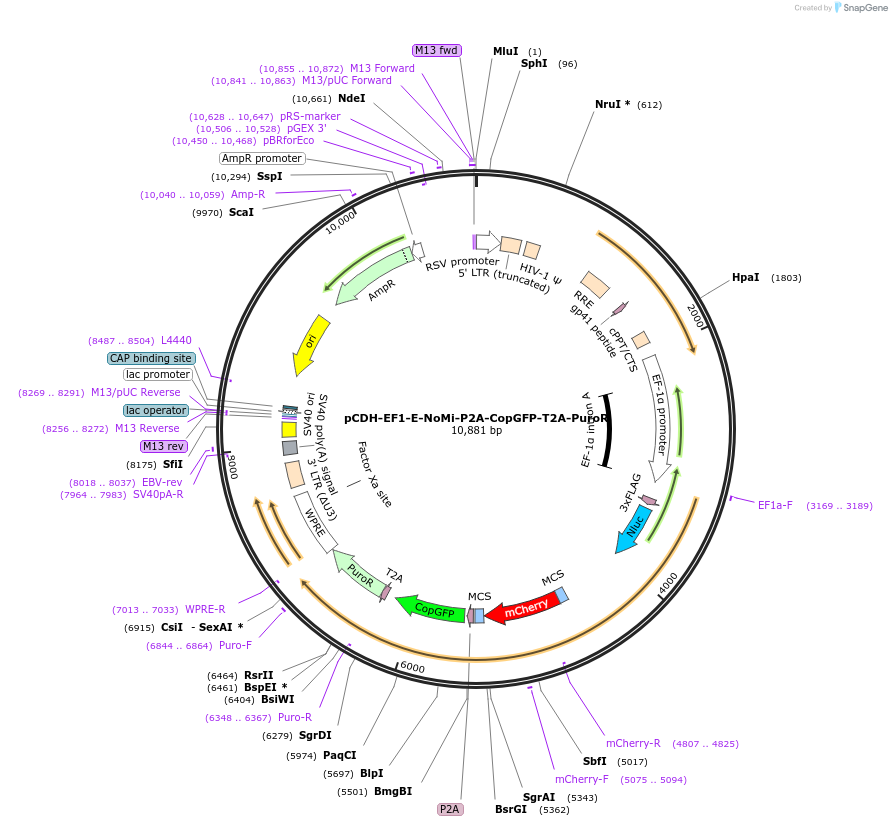

Backbone
-
Vector backbone#73022
-
Backbone manufactureraddgene
- Backbone size w/o insert (bp) 8689
- Total vector size (bp) 10933
-
Vector typeMammalian Expression, Lentiviral
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameE-NoMi
-
Alt nameEF-1alpha driven EV reporter called Nanoluc outside mCherry inside
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2133
- Promoter EF-1alpha
-
Tags
/ Fusion Proteins
- nanoluciferase
- 3xFlag tag
- mCherry (C terminal on insert)
- copGFP (C terminal on backbone)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer ATGGCGGTGGAAGGAGGAA
- 3′ sequencing primer ACCGGTGGATCCCGGG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCDH-EF1-E-NoMi-P2A-CopGFP-T2A-PuroR was a gift from Koen Breyne (Addgene plasmid # 207805 ; http://n2t.net/addgene:207805 ; RRID:Addgene_207805) -
For your References section:
Tracking human neurologic disease status in mouse brain/plasma using reporter-tagged, EV-associated biomarkers. Maalouf KE, Vaine CA, Frederick DM, Yoshinaga A, Obuchi W, Mahjoum S, Nieland L, Al Ali J, Bragg DC, Breakefield XO, Breyne K. Mol Ther. 2023 Jul 5;31(7):2206-2219. doi: 10.1016/j.ymthe.2023.05.011. Epub 2023 May 16. 10.1016/j.ymthe.2023.05.011 PubMed 37198883
