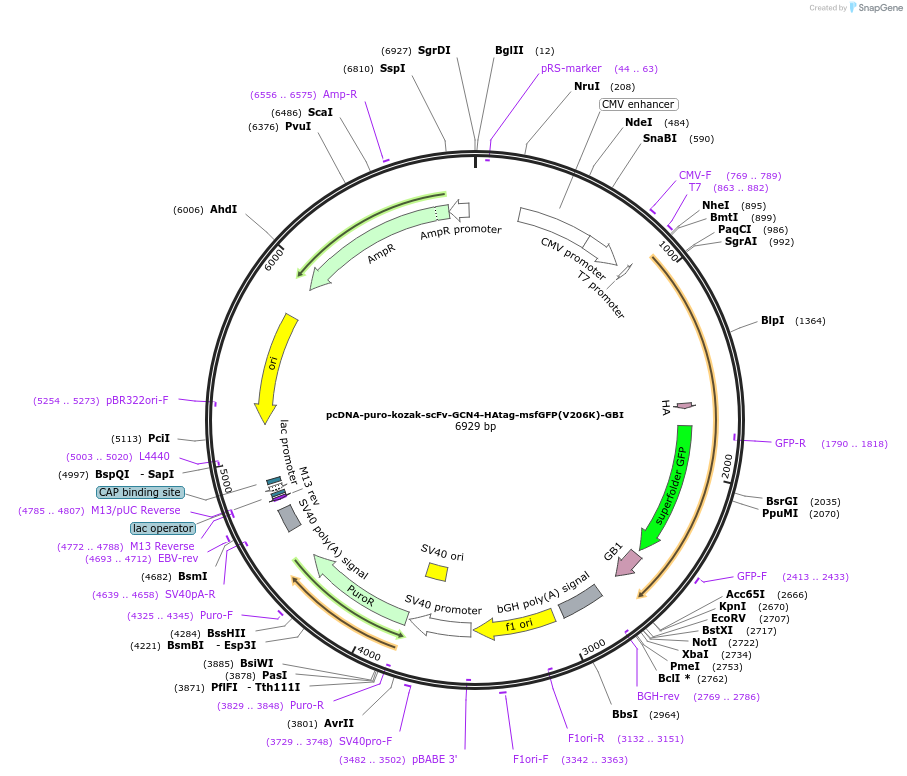

pcDNA-puro-kozak-scFv-GCN4-HAtag-msfGFP(V206K)-GBI
(Plasmid #205162)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 205162 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA
  • Total vector size (bp) 6926
  • Vector type
    Mammalian Expression, Bacterial Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    scFv-GCN4-HAtag-msfGFP(V206K)-GBI
  • Species
    Synthetic
  • Insert Size (bp)
    1756
  • Promoter CMV

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    The scFv-GCN4-HAtag-sfGFP-GBI was amplified from Addgene plasmid #60907 and V206K mutation was performed to sfGFP

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA-puro-kozak-scFv-GCN4-HAtag-msfGFP(V206K)-GBI was a gift from Weirui Ma (Addgene plasmid # 205162 ; http://n2t.net/addgene:205162 ; RRID:Addgene_205162)

  • For your References section:

    Enhanced single RNA imaging reveals dynamic gene expression in live animals. Hu Y, Xu J, Gao E, Fan X, Wei J, Ye B, Xu S, Ma W. Elife. 2023 Mar 3;12:e82178. doi: 10.7554/eLife.82178. 10.7554/eLife.82178 PubMed 36867026
