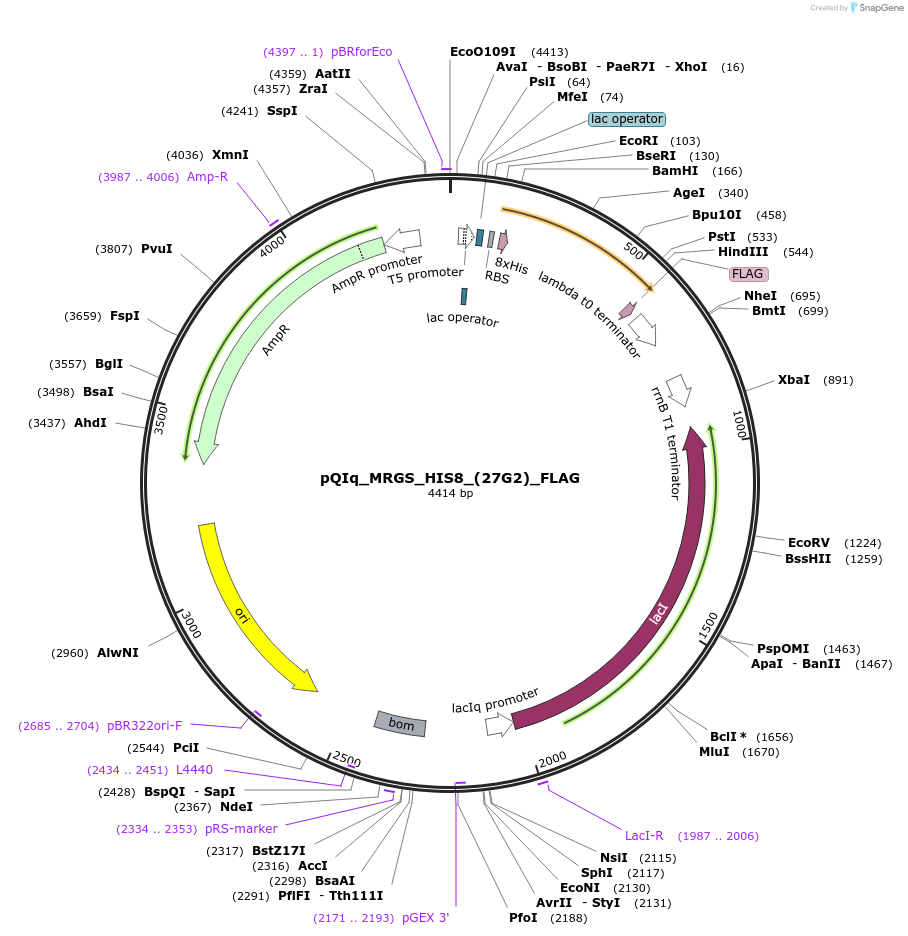

pQIq_MRGS_HIS8_(27G2)_FLAG
(Plasmid
#199616)
-
PurposeEncodes DARPin-FLAG 27G2 for bacterial expression and column purification
-
Depositing Lab
-
Sequence Information
-
Sequences (2) — Accept Affinity Reagent Sequence Policy
-
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 199616 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepQE30
-
Backbone manufacturerQiagen
- Backbone size w/o insert (bp) 4037
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameDARPin-FLAG 27G2
-
SpeciesSynthetic
- Promoter T5
-
Tags
/ Fusion Proteins
- 8xHis (N terminal on insert)
- FLAG (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (unknown if destroyed)
- 3′ cloning site HindIII (unknown if destroyed)
- 5′ sequencing primer TTGTGAGCGGATAACAA (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
HTC DARPin name 008-855-2308-A9
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pQIq_MRGS_HIS8_(27G2)_FLAG was a gift from Shiva Tyagarajan (Addgene plasmid # 199616 ; http://n2t.net/addgene:199616 ; RRID:Addgene_199616) -
For your References section:
A DARPin-based molecular toolset to probe gephyrin and inhibitory synapse biology. Campbell BFN, Dittmann A, Dreier B, Pluckthun A, Tyagarajan SK. Elife. 2022 Oct 31;11:e80895. doi: 10.7554/eLife.80895. 10.7554/eLife.80895 PubMed 36314779
