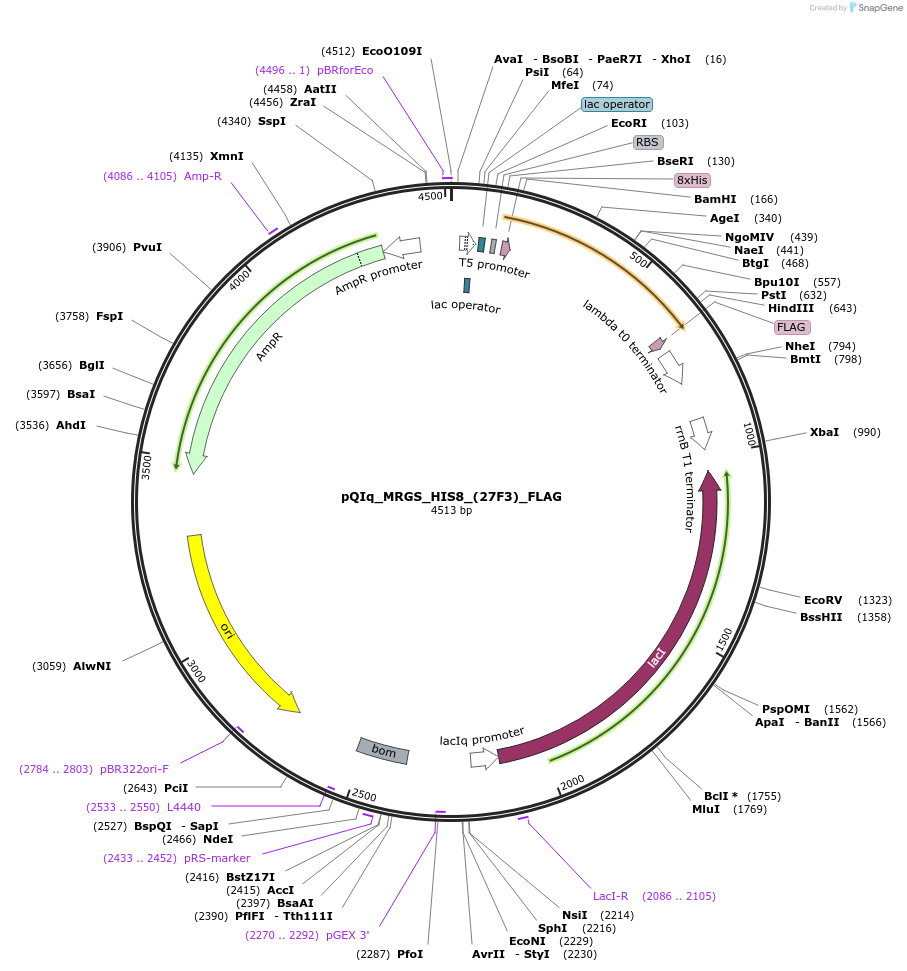

pQIq_MRGS_HIS8_(27F3)_FLAG
(Plasmid #199615)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 199615 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pQE30
  • Backbone manufacturer
    Qiagen
  • Backbone size w/o insert (bp) 4037
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DARPin-FLAG 27F3
  • Species
    Synthetic
  • Promoter T5
  • Tags / Fusion Proteins
    • 8xHis (N terminal on insert)
    • FLAG (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site HindIII (unknown if destroyed)
  • 5′ sequencing primer TTGTGAGCGGATAACAA
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

HTC DARPin name 008-855-2309-D7

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pQIq_MRGS_HIS8_(27F3)_FLAG was a gift from Shiva Tyagarajan (Addgene plasmid # 199615 ; http://n2t.net/addgene:199615 ; RRID:Addgene_199615)

  • For your References section:

    A DARPin-based molecular toolset to probe gephyrin and inhibitory synapse biology. Campbell BFN, Dittmann A, Dreier B, Pluckthun A, Tyagarajan SK. Elife. 2022 Oct 31;11:e80895. doi: 10.7554/eLife.80895. 10.7554/eLife.80895 PubMed 36314779
