Addgene

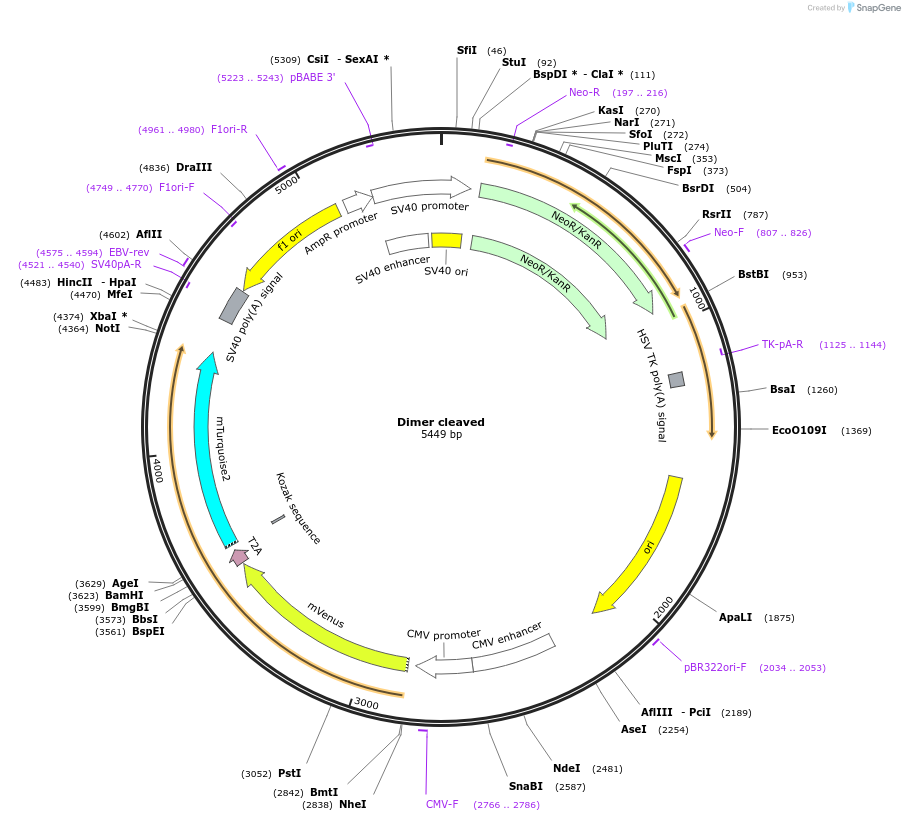

Dimer cleaved
(Plasmid #198199)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 198199 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3931
  • Total vector size (bp) 5449
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mVenus-T2A-mTurquoise2
  • Species
    Synthetic
  • Mutation
    A206K both

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer GAAATTTGTGATGCTATTGC
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    The original plasmid mNeonGreen-2A-mTurquoise2 was a gift from Dorus Gadella (Addgene plasmid # 98885 ; http://n2t.net/addgene:98885 ; RRID:Addgene_98885)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Dimer cleaved was a gift from Christian Wahl-Schott (Addgene plasmid # 198199 ; http://n2t.net/addgene:198199 ; RRID:Addgene_198199)

  • For your References section:

    Protocol for deriving proximity, affinity, and stoichiometry of protein interactions using image-based quantitative two-hybrid FRET. Feldmann C, Schanzler M, Ben-Johny M, Wahl-Schott C. STAR Protoc. 2023 Jul 28;4(3):102459. doi: 10.1016/j.xpro.2023.102459. 10.1016/j.xpro.2023.102459 PubMed 37516972
