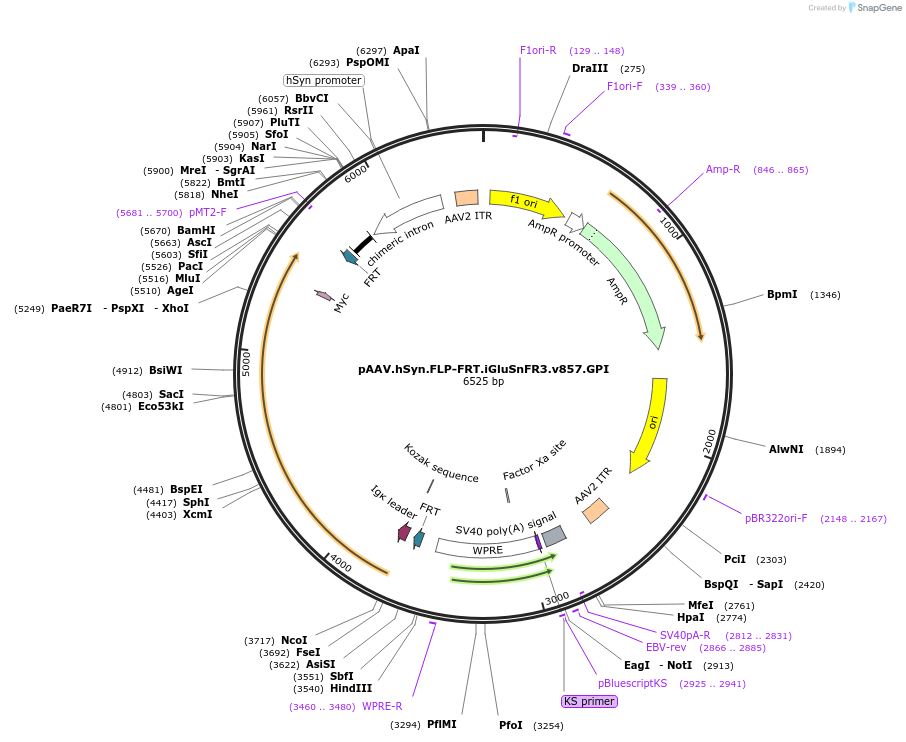

pAAV.hSyn.FLP-FRT.iGluSnFR3.v857.GPI
(Plasmid #196223)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 196223 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV hSyn FLP-FRT
  • Backbone size w/o insert (bp) 4200
  • Total vector size (bp) 6673
  • Vector type
    Mammalian Expression, Mouse Targeting, AAV, Cre/Lox, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    <8 hours
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    pAAV hSyn FLP-FRT iGluSnFR3 v857.GPI
  • Alt name
    iGluSnFR3 v857.GPI
  • Alt name
    iGluSnFR3 556dot857.GPI
  • Alt name
    v857.GPI
  • Species
    M. musculus (mouse), R. norvegicus (rat), Synthetic
  • Insert Size (bp)
    1821
  • Tags / Fusion Proteins
    • IgK-chain (N terminal on insert)
    • Myc epi tag (C terminal on insert)
    • GPI anchor (C terminal on insert)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV.hSyn.FLP-FRT.iGluSnFR3.v857.GPI was a gift from Kaspar Podgorski (Addgene plasmid # 196223 ; http://n2t.net/addgene:196223 ; RRID:Addgene_196223)

  • For your References section:

    Glutamate indicators with improved activation kinetics and localization for imaging synaptic transmission. Aggarwal A, Liu R, Chen Y, Ralowicz AJ, Bergerson SJ, Tomaska F, Mohar B, Hanson TL, Hasseman JP, Reep D, Tsegaye G, Yao P, Ji X, Kloos M, Walpita D, Patel R, Mohr MA, Tillberg PW, Looger LL, Marvin JS, Hoppa MB, Konnerth A, Kleinfeld D, Schreiter ER, Podgorski K. Nat Methods. 2023 May 4. doi: 10.1038/s41592-023-01863-6. 10.1038/s41592-023-01863-6 PubMed 37142767
