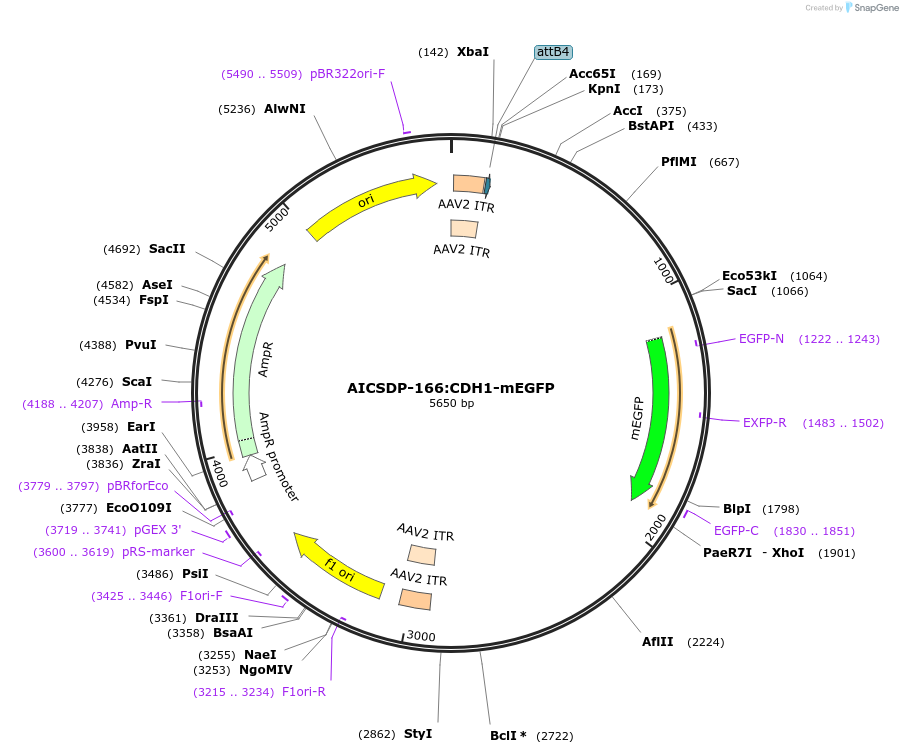

AICSDP-166:CDH1-mEGFP
(Plasmid #193921)

• Purpose: Homology arms and LE-mEGFP sequence for C-terminus tagging of human cadherin 1
• Depositing Lab: Allen Institute for Cell Science
• Publication: Allen Institute for Cell Science Plasmids (unpublished)

Backbone

• Vector backbone: pAAV
• Vector type: AAV, CRISPR ; Donor Template

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: cadherin 1 Homology Arms with LE-mEGFP
• Alt name: cadherin 1
• Species: H. sapiens (human)
• Insert Size (bp): 2719
• Mutation: homology arms contain point mutations to disrupt crRNA binding sites used, and WTC-11 specific homozygous SNP(s)
• Entrez Gene: CDH1 (a.k.a. Arc-1, BCDS1, CD324, CDHE, ECAD, LCAM, UVO)
• Tag / Fusion Protein:
  • linker-mEGFP (C terminal on insert)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Industry MTA

Depositor Comments

This plasmid has been used with locus-specific CRISPR/Cas9 to add a mEGFP tag to the C-terminus of human CDH1 in WTC-11 human induced pluripotent stem cells by the Allen Institute for Cell Science. Linker (AA) sequence: LE. After protein tagging using this donor template plasmid and CRISPR/Cas9 reagents, transfected cells may exhibit varying intensity levels of fluorescence, likely due to editing precision. To obtain cells of uniform intensity levels, see our protocol for fluorescence-assisted cell sorting and subcloning of transfected cells (https://www.allencell.org/instructional-videos-and-tutorials-for-cell-methods.html) Further, we recommend PCR-based assays for identifying precisely edited clones as previously described (https://www.molbiolcell.org/doi/abs/10.1091/mbc.e17-03-0209) For more information on the entire plasmid collection, please see https://www.addgene.org/allen-institute-cell-science/ .
