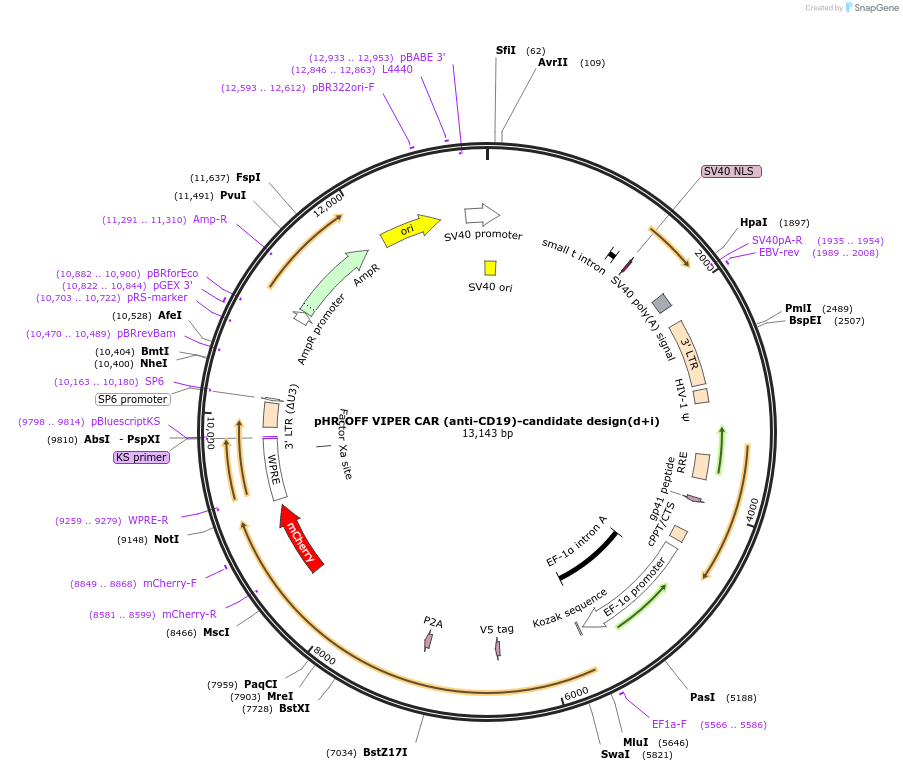

pHR-OFF VIPER CAR (anti-CD19)-candidate design(d+i)
(Plasmid #192123)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 192123 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHR
  • Backbone size w/o insert (bp) 8440
  • Total vector size (bp) 12493
  • Vector type
    Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    pEF1a-anti-CD19scFV_CD28__41BB_peptide_P2A_DAP10_41BB_NS3(s139a)_CD3z-mCherry
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    4712

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CAGTGCAGGGGAAAGAATAGTAGAC
  • 3′ sequencing primer CATAGCGTAAAAGGAGCAACA
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHR-OFF VIPER CAR (anti-CD19)-candidate design(d+i) was a gift from Wilson Wong (Addgene plasmid # 192123 ; http://n2t.net/addgene:192123 ; RRID:Addgene_192123)

  • For your References section:

    High-performance multiplex drug-gated CAR circuits. Li HS, Wong NM, Tague E, Ngo JT, Khalil AS, Wong WW. Cancer Cell. 2022 Aug 26. pii: S1535-6108(22)00372-5. doi: 10.1016/j.ccell.2022.08.008. 10.1016/j.ccell.2022.08.008 PubMed 36084652
